Four models share one set of electrical ratings. The choice between them comes down to how the switch resets after it is operated.
Why Cable Pull Safety Switches Are Essential
A conveyor line is usually longer than a person can walk in the time it takes a problem to travel along it. A stop button at the head end does not help someone standing halfway down the line. A pull cord switch runs the stop function along the whole length of the run: pull the rope at any point, and the contacts switch. On a long line, that is an efficient way to put a stop within reach of every workstation.

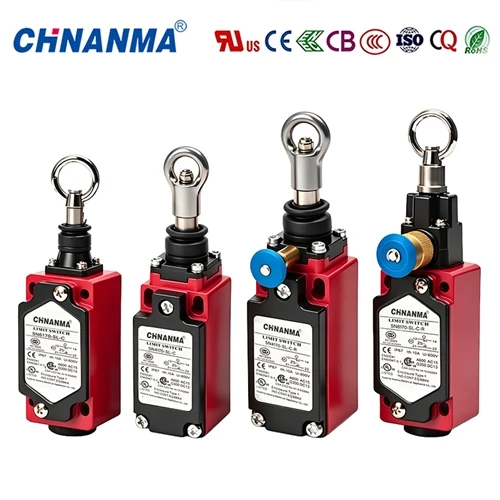

The four models
| Model | Reset |
| 6170-SL-C | Automatic reset |
| 6170-SL-C-R | Manual reset |
| 4170-SL-C | Automatic reset |
| 4170-SL-C-R | Manual reset |
The -R model rope pull switches feature a blue reset button on the side of the housing. Once the rope has been pulled, the switch stays in the operated position until someone presses that button, which is what makes it a resettable cable pull safety switch. The models without -R reset on their own and have no reset button on the body.
Specifications - the same across all four models
- Conventional thermal current (Ith): 10 A
- Rated insulation voltage (Ui): 600 V
- Utilisation category : A600 AC15 / Q300 DC13
- Contacts: 1 normally open + 1 normally closed
- Enclosure type: Enclosure Type 1
- Ingress protection: IP65 (IP67 available on request)
- Standards: EN50041, EN60947-5-1 (IEC 60947-5-1 applies to 6170-SL-C-R)
Where the series is used
The same rope pull switch is supplied for four common duty points:
Automatic assembly lines - the stop function sits along the length of the line and is reached from any workstation
Industrial production lines - the same arrangement on a longer run, where the rope has to be within reach from several positions
Elevators - for rope pull emergency stop on the installation
Storage and warehouse handling equipment - conveyors and transfer points inside the warehouse
Construction
This rope pull safety switch features a zinc alloy base and industrial-grade flame-retardant housing. It adopts silver contacts and fully enclosed sealing design, offering reliable protection against water, oil and dust for stable operation in dusty or damp environments.
About Us
Jiangxi Nanma Electrical Co., Ltd. was founded in 2001. We manufacture rope pull safety switches, limit switches and micro switches, with factory in Ruijin and sales center in Wenzhou. We support OEM & ODM customization. Our rope pull safety switches carry CE, CCC, CB, CQ, RoHS certificates. The company holds 9001:2015, ISO 14001 and ISO 45001 management certifications. We provide sample service, technical support and one-year warranty.
Before you order
Every rope pull safety switch unit is supplied with its rating table printed on the nameplate. The ratings vary by configuration, so please confirm the model, the reset type, the protection class and the conduit entry when placing your order. If you need the data sheet for a specific configuration of this cable pull safety switch, contact us and we will send it.
