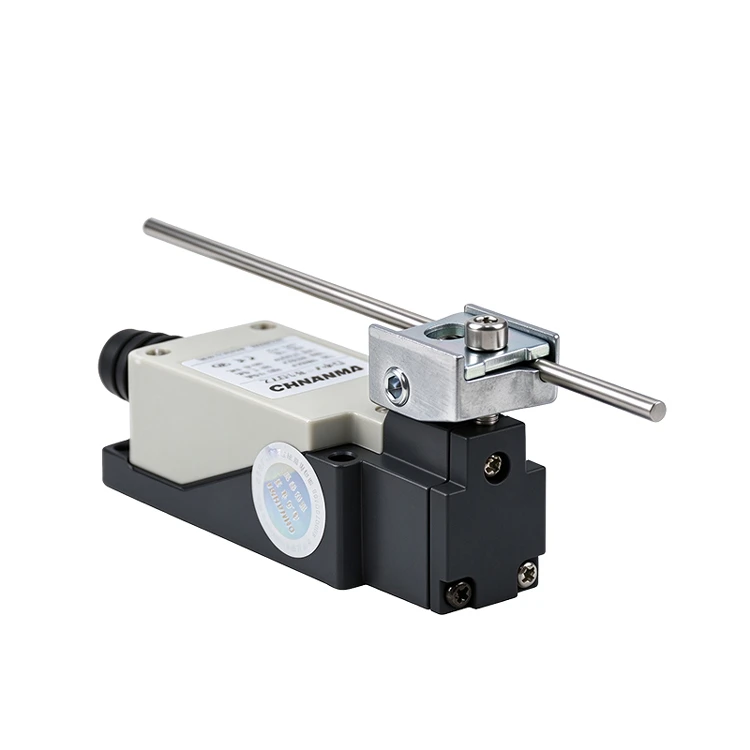

Industrial equipment often needs reliable components to detect moving-part end positions. Our factory-supplied D4V-8107Z is an adjustable rod lever limit switch designed for real-world automation tasks. This compact limit switch is designed for scenarios where target components sit away from the switch body; its extendable rod makes physical contact, so the main unit can stay clear of moving machinery. When equipment fixtures are re‑adjusted, you only need to reposition its extendable rod instead of replacing this travel limit switch entirely.
Core Performance & Certifications
This limit switch follows published rated parameters for practical site matching.
- Rated Voltage: 125VAC / 250VAC, 8VDC-250VDC
- Inrush Current: N.C. Max. 24A, N.O. Max. 12A
- Contact Resistance: Max. 25mΩ (initial value)
- Insulation Resistance: Min. 100MΩ (below 500VDC)
- Electrical Life: Min. 500,000 operations
- Protection Degree: IP65
- Operation Force: Max. 750g
- Over-Travel: Min. 50°
- Ambient Temperature: -20℃ to +70℃ (No icing)
- Certifications: CE, CB, CCC, CQC, RoHS
Engineers need to check over-travel and operating force against local cam or gate structures before ordering.
Installation & Application Scenarios
Thanks to its compact housing and base mounting holes, this adjustable rod lever limit switch fits flat machine frames, track sides and narrow installation spots. Users can adjust rod length via the clamp screw to suit different detection distances. It mounts on fixed frames rather than moving carriages, helping keep wiring static.
The compact limit switch serves lifting machinery, sliding gates, material-handling trolleys, textile equipment, stone-processing machines and automated lifting platforms. For sliding-gate setups, the rod is actuated by gate-leaf movement; for lifting platforms, it acts as an end-travel stop signal element.
Our Services
As a direct manufacturer, we maintain consistent production quality and provide technical support covering model selection, application consultation and order follow-up.
FAQ
Q: Can I change the rod length on-site?
A: Yes, loosen the clamp screw to adjust the actuator rod of this travel limit switch.
Q: What should I confirm before purchase?
A: Match over-travel angle and operating force with your machine's trigger parts.
Q: Can this adjustable rod lever limit switch work in outdoor environments?
A: It has IP65 protection grade. It can resist dust and splashing water, yet it is not suitable for long‑term direct immersion in water. Avoid use under icy conditions.
