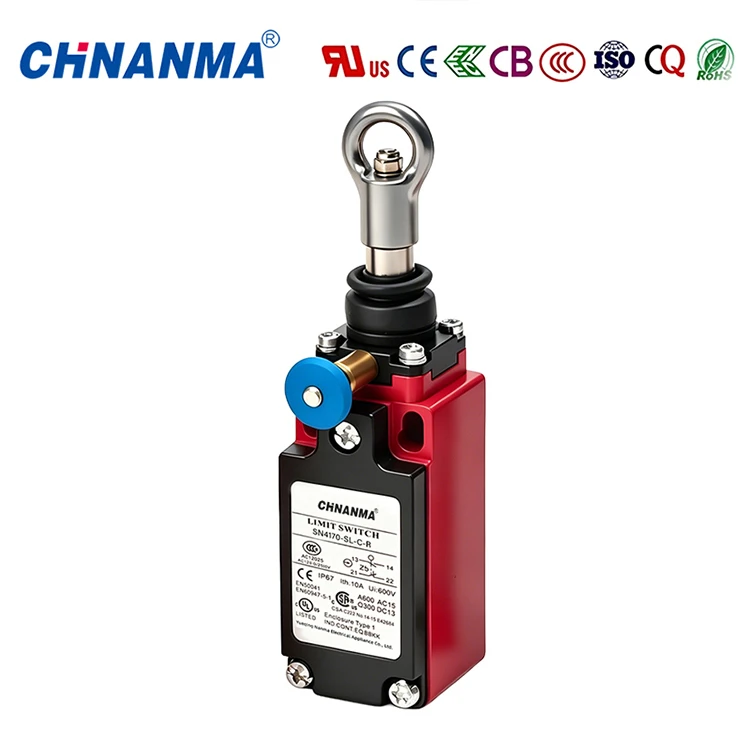

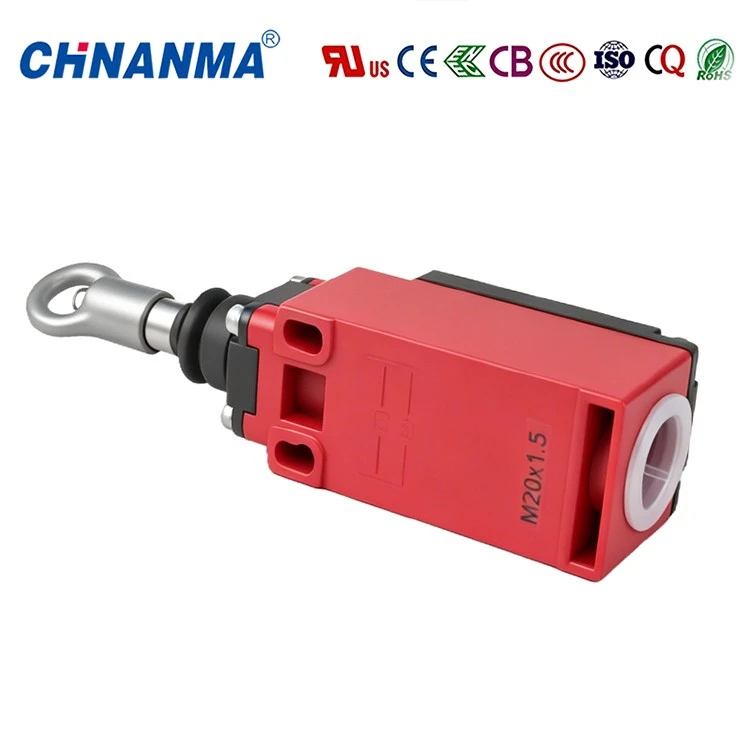

Pull Cord Safety Switch SN4170-SL-C-R

Product Overview

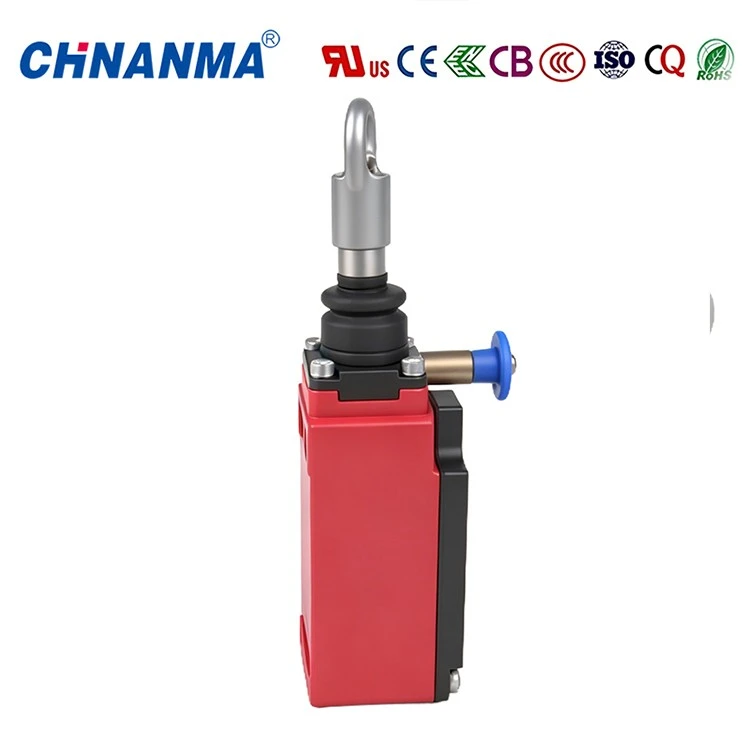

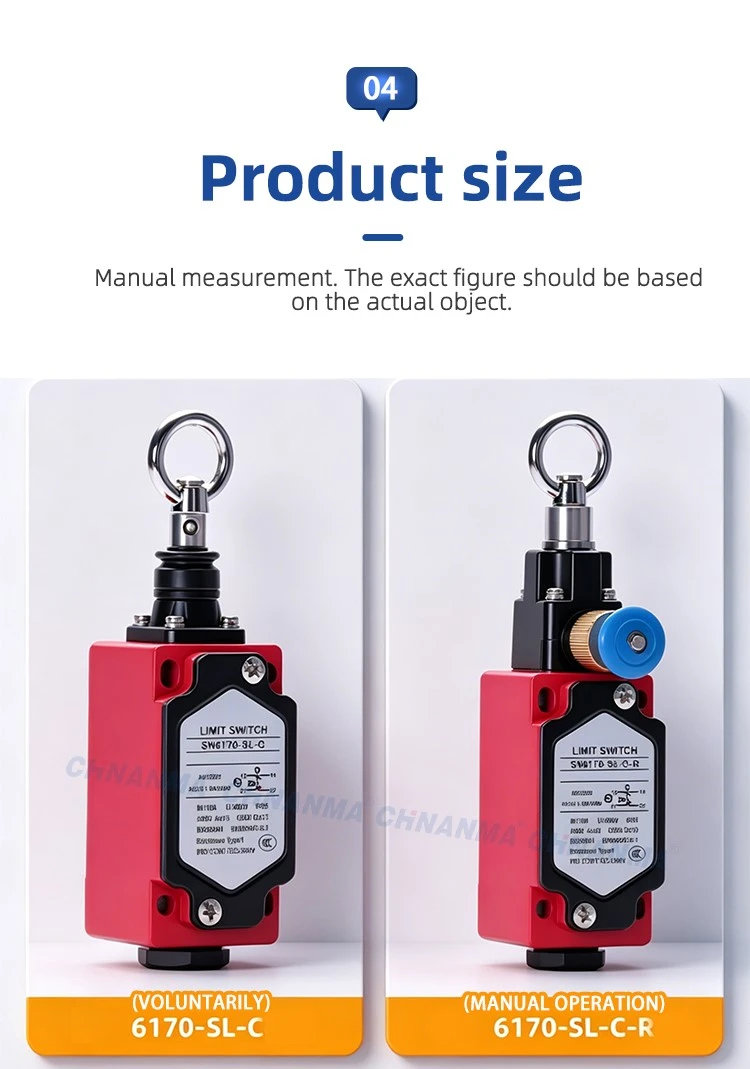

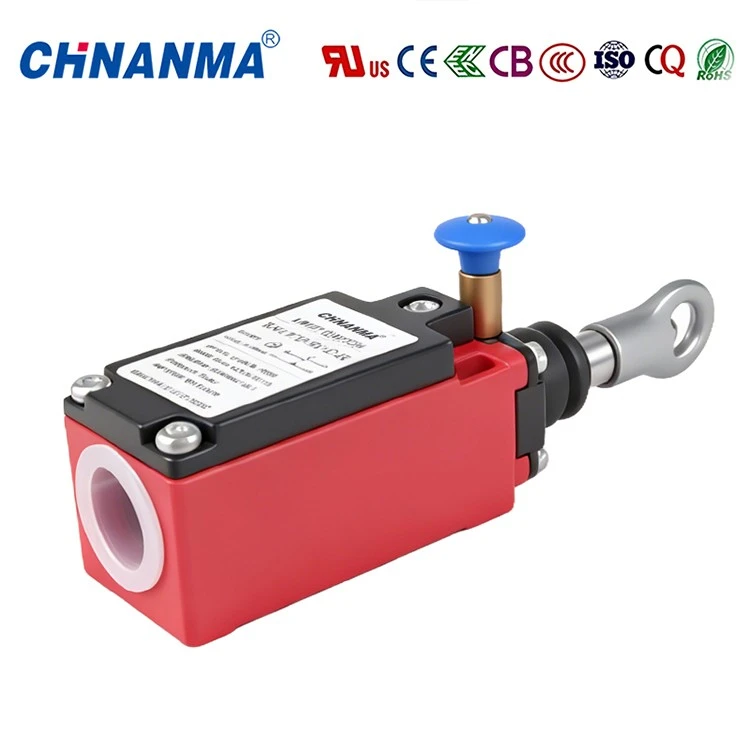

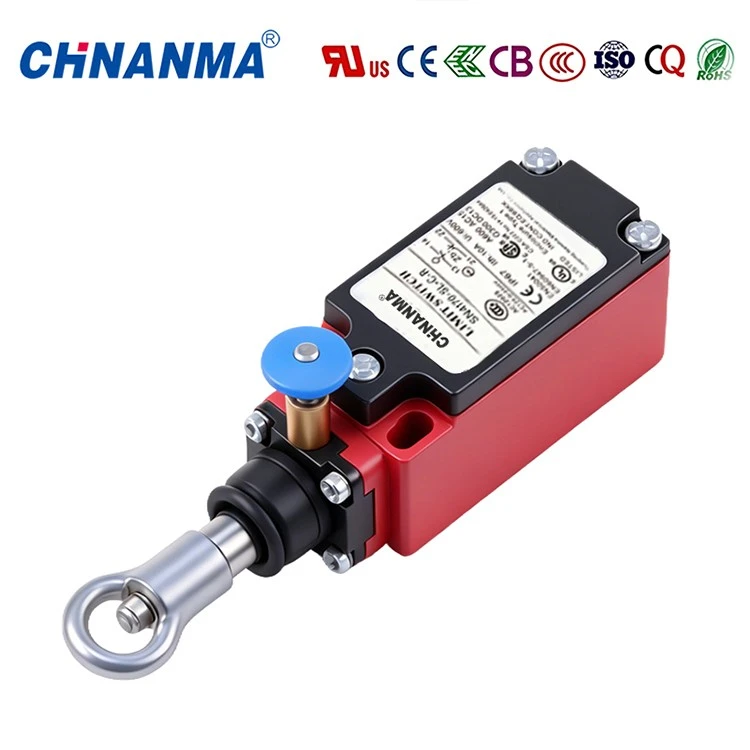

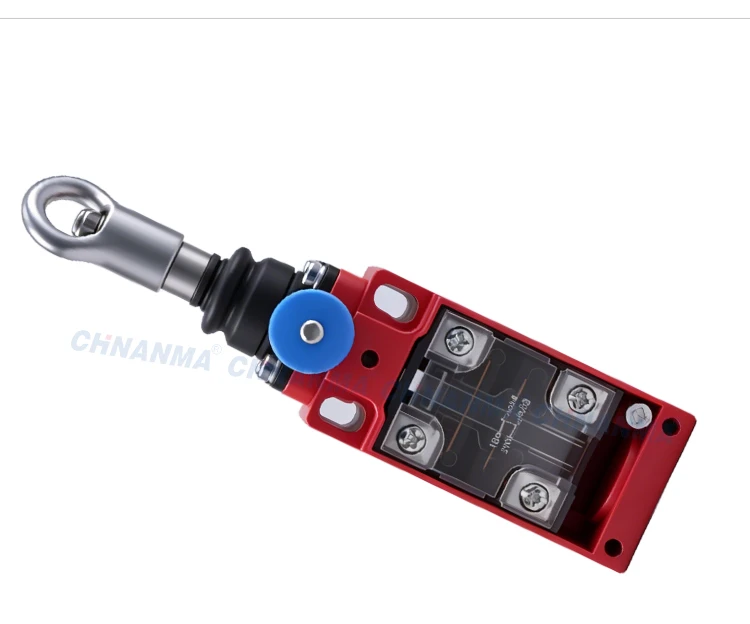

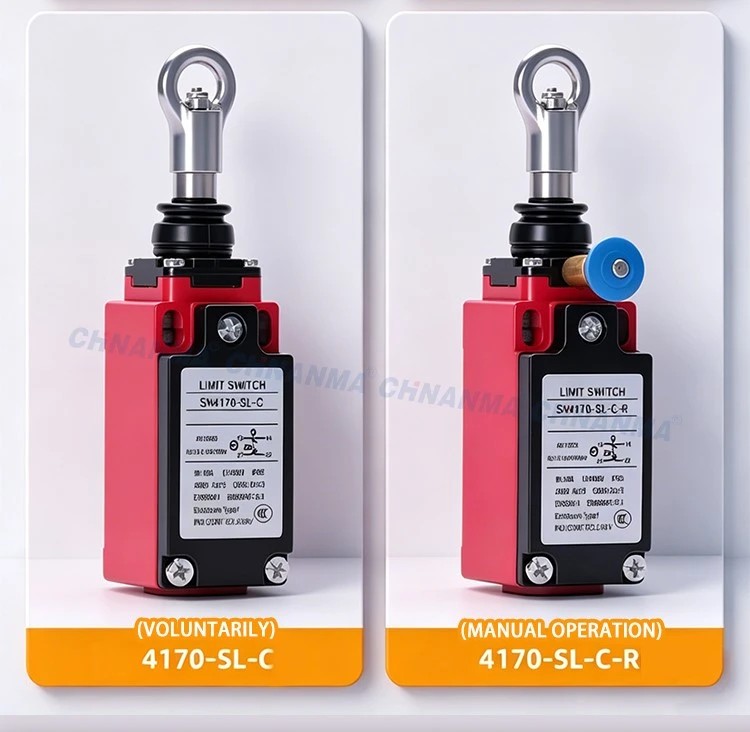

A restart that has to be signed off needs a switch that will not do it by itself. This pull cord safety switch latches when the rope is pulled: the NC contact opens, the drive stops, and both contacts stay where they are after the rope is released. Closing the circuit again takes a person at the unit and a press of the blue reset button on the housing. Where the restart is part of a written procedure rather than an accident of the rope, that is the behaviour a safety rope switch has to have.

Key Specifications
- Contact Function: The NC contact holds the control circuit closed in normal operation. Pulling the rope opens it and stops the line. The NO contact closes at the same time for a signal or indicator.

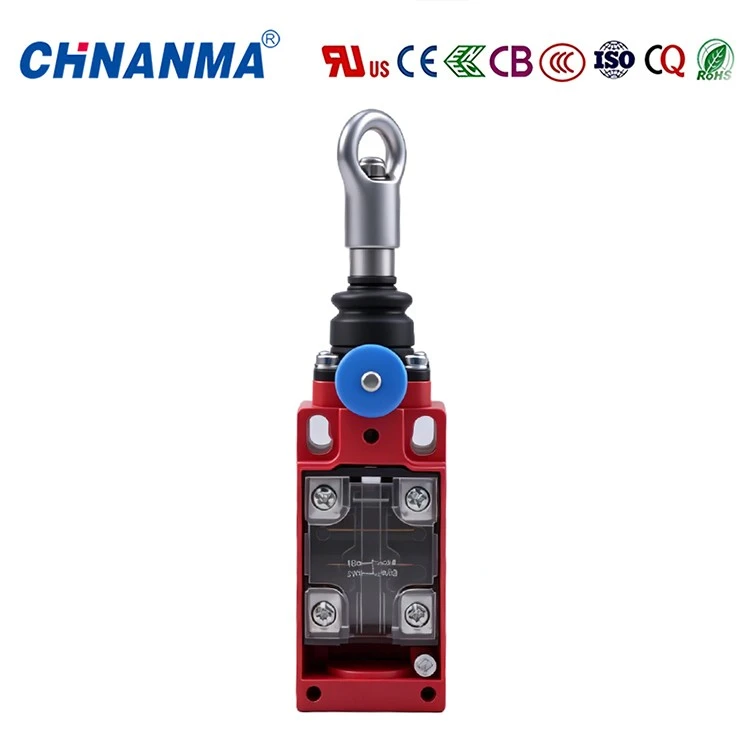

- Terminal Markings: 13-14 (NO), 21-22 (NC)
- Enclosure Type: Type 1
- Ingress Protection: IP67
- Standards: EN50041, EN60947-5-1

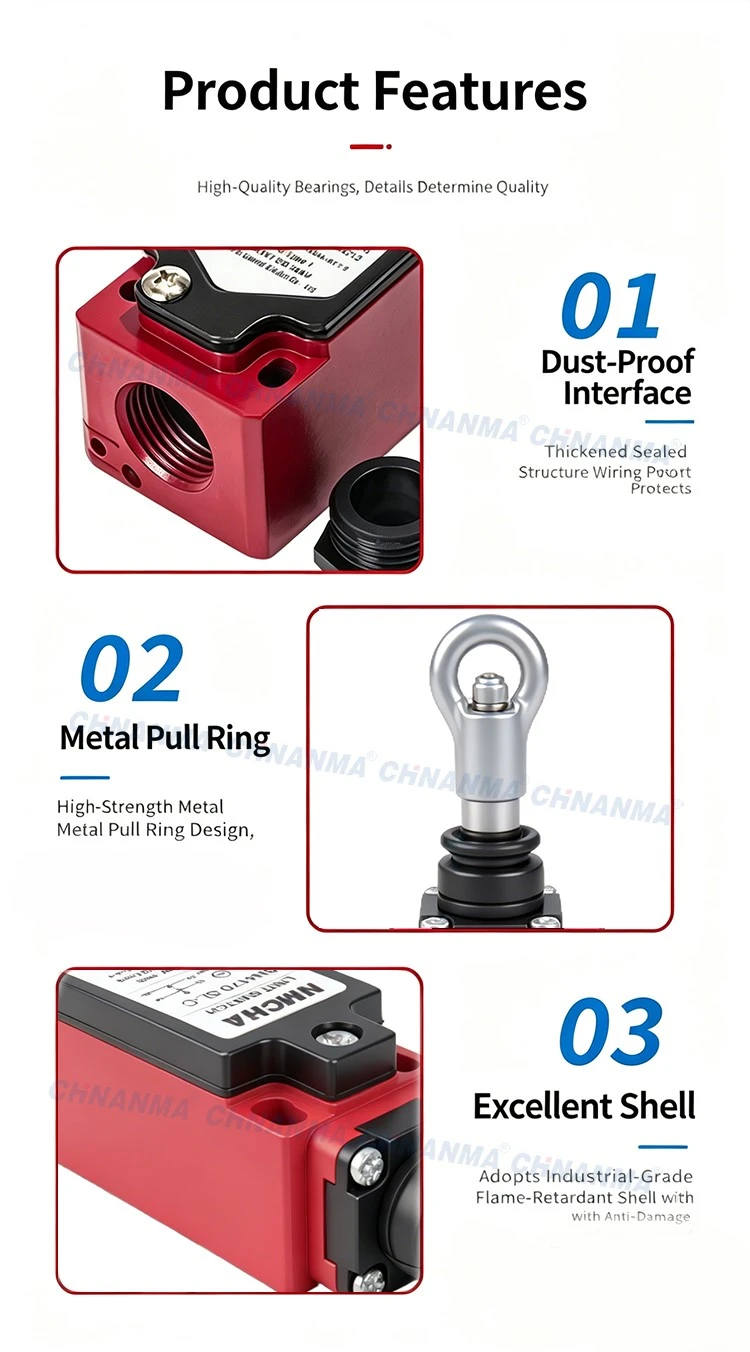

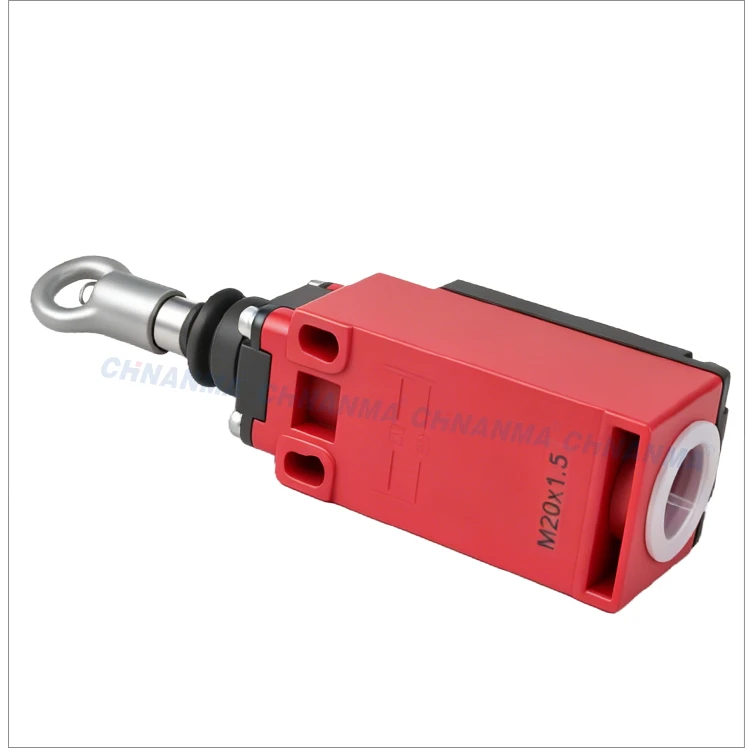

- Conduit Entry: M20 x 1.5

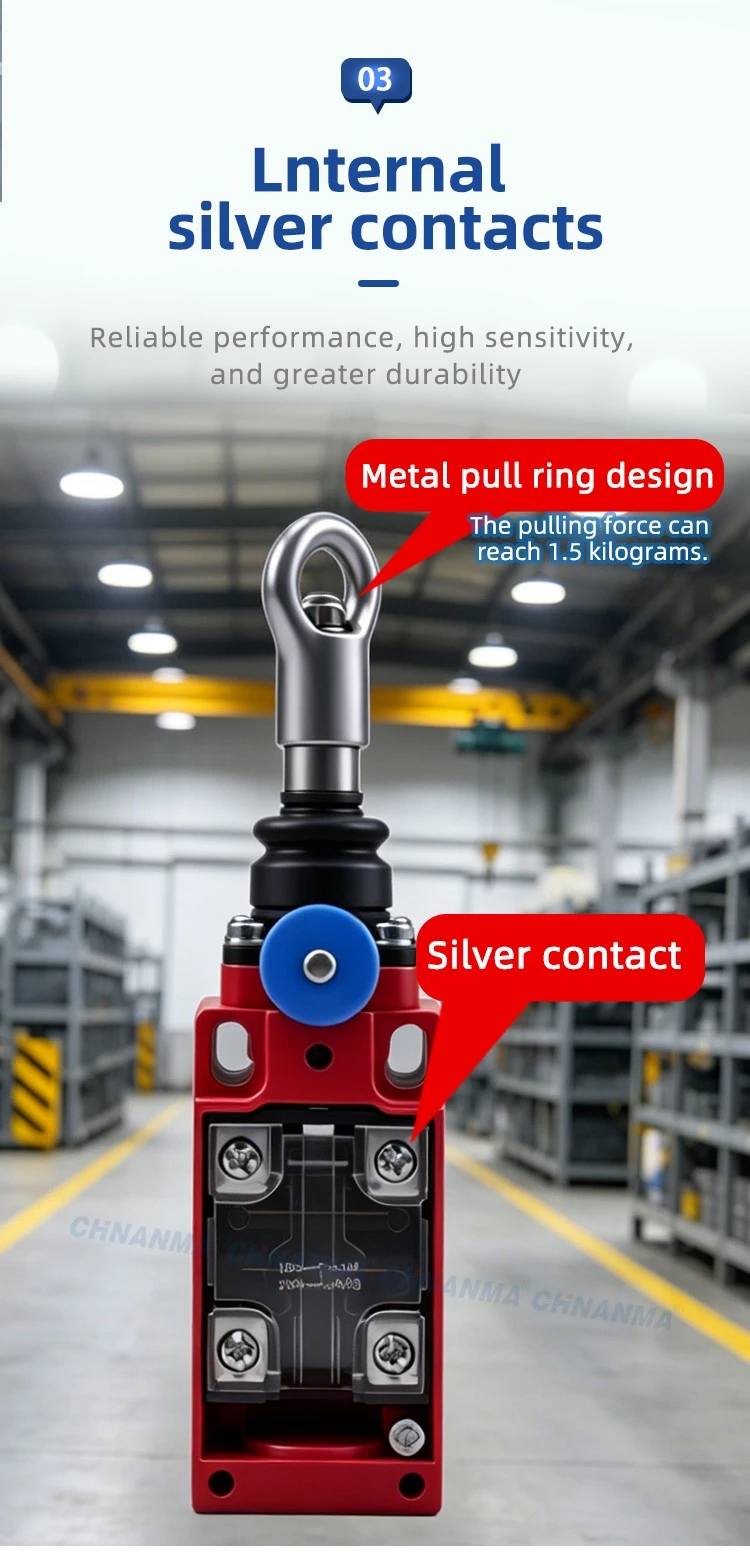

- Operating Force: 1.5 kgf (14.71 N) at the metal pull ring

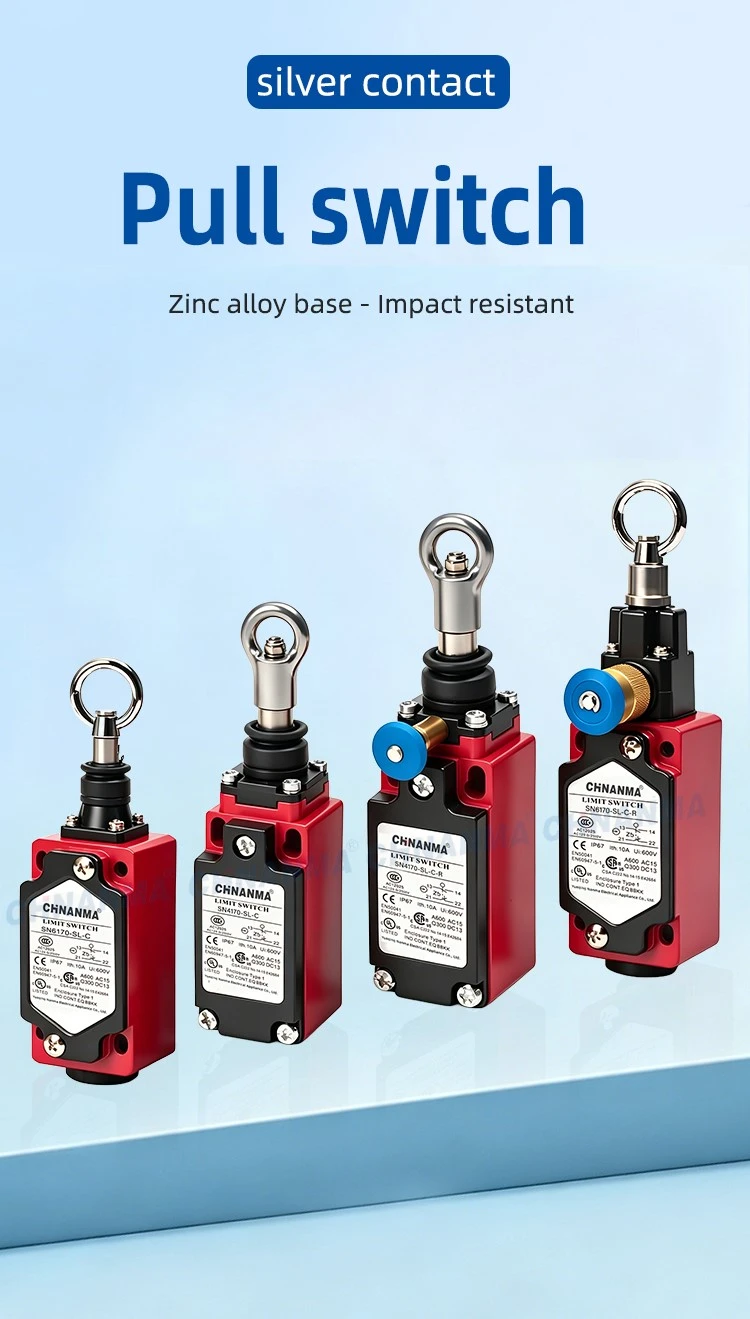

- Enclosure Base: Zinc alloy
- Housing: Industrial-grade flame-retardant shell
- Contacts: Silver contacts
Applications

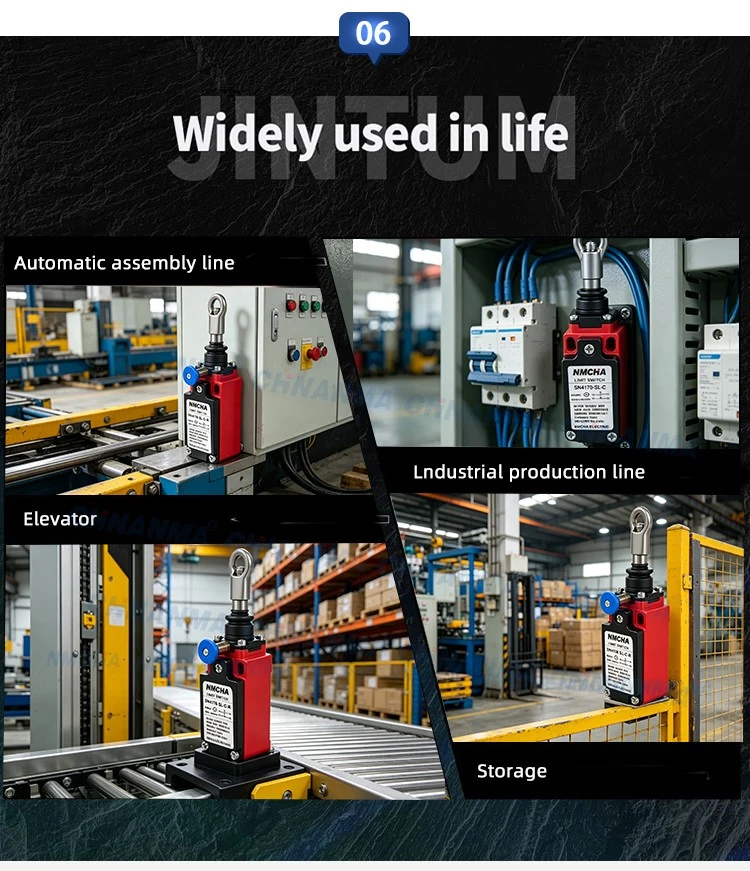

Material-handling elevator installations are where this model belongs, and manual reset is the reason. For material-handling elevators, the circuit must not re-close automatically: after the rope is pulled, the contacts stay open until a technician reaches the unit and presses the blue button. That is what an elevator pull cord switch has to do, and it is what a cable pull safety switch has to do on any run where restart requires on-site personnel intervention. Industrial production lines and warehouse conveying come to this model for the same reason.
About Us
Our pull cord safety switches carry the CE, CCC, CB, CQ and RoHS marks, and the declaration of conformity for EN50041 and EN60947-5-1 is available on request. The plant covers 6,000 square meters in Ruijin City, Jiangxi Province, and our business office is located in Wenzhou, Zhejiang. OEM/ODM customization is supported. Share your project-required standards, and we will recommend the suitable pull cord safety switch for your application.
FAQ

Q: Can you send the certification documents?

A: Yes. The CE, CCC, CB, CQ and RoHS certificates for this safety rope switch can be supplied on request, along with the declaration of conformity for EN50041 and EN60947-5-1. Send us the list your project needs and we will match it.

Q: What material is the pull-ring made of?

A: The pull-ring is a metal component built for reliable performance within industrial environments.
Q: What is the maximum cable length for the pull rope?

A: There is no fixed maximum rope length defined by the switch itself. However, please ensure the pulling force reaches the rated operating force of 1.5 kgf (14.71 N) when the rope is pulled. We recommend consulting us for your specific conveyor layout.
