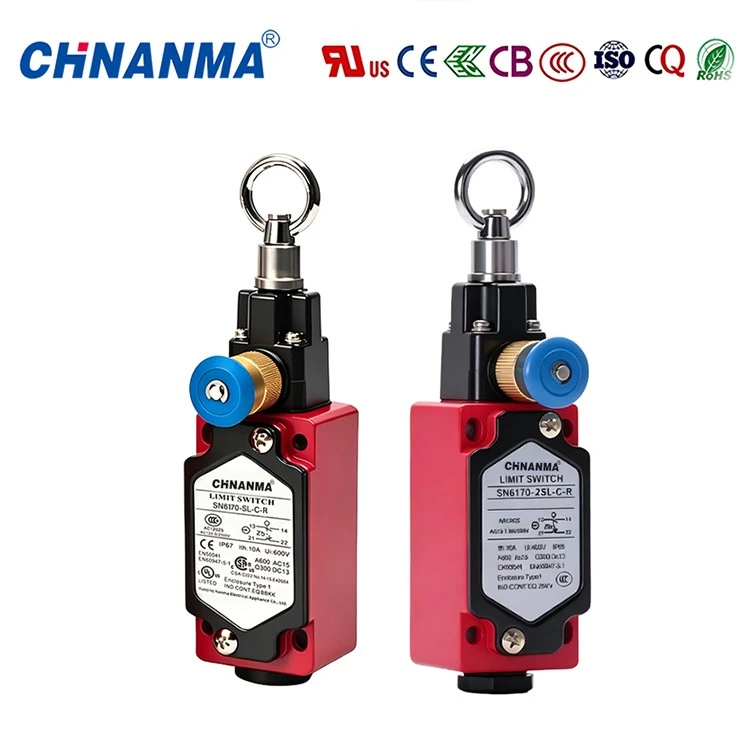

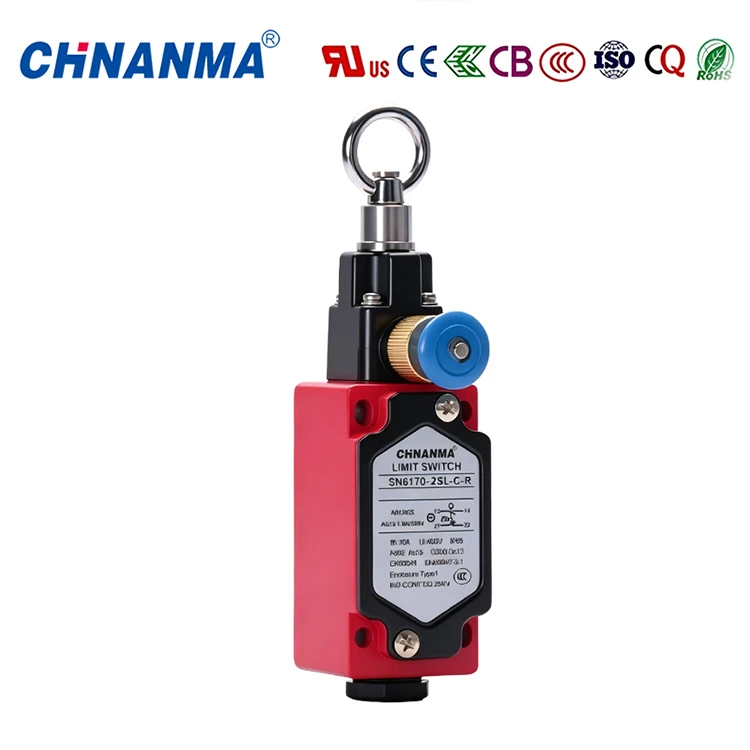

Cable Pull Safety Switch SN6170-SL-C-R

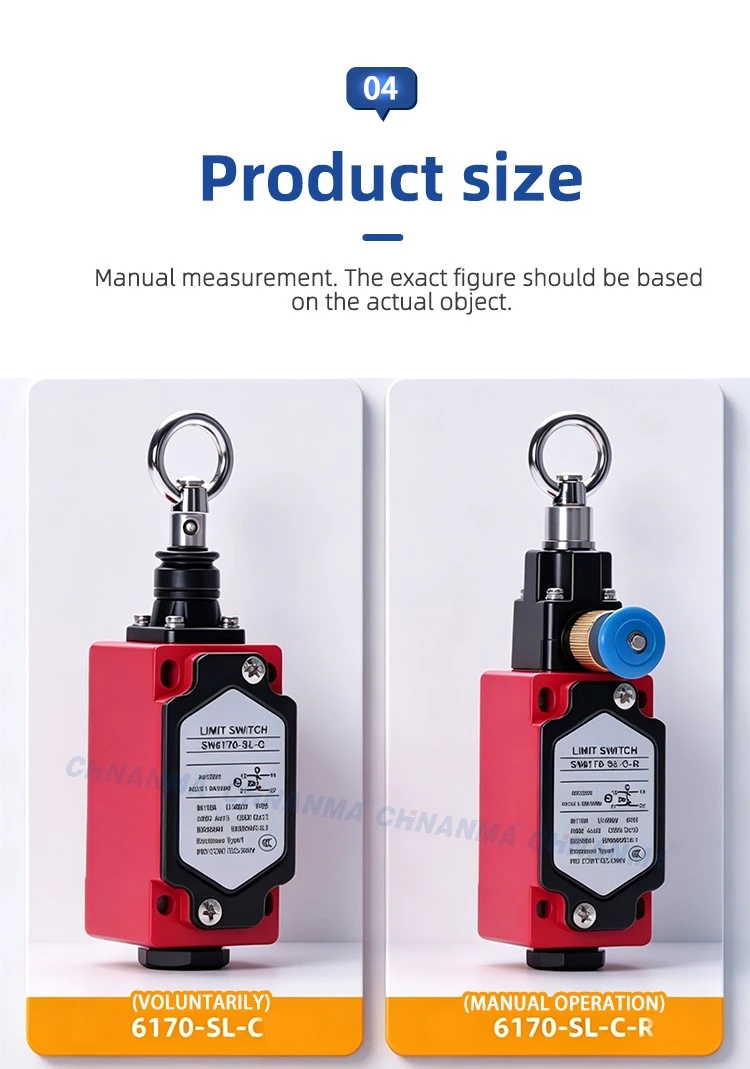

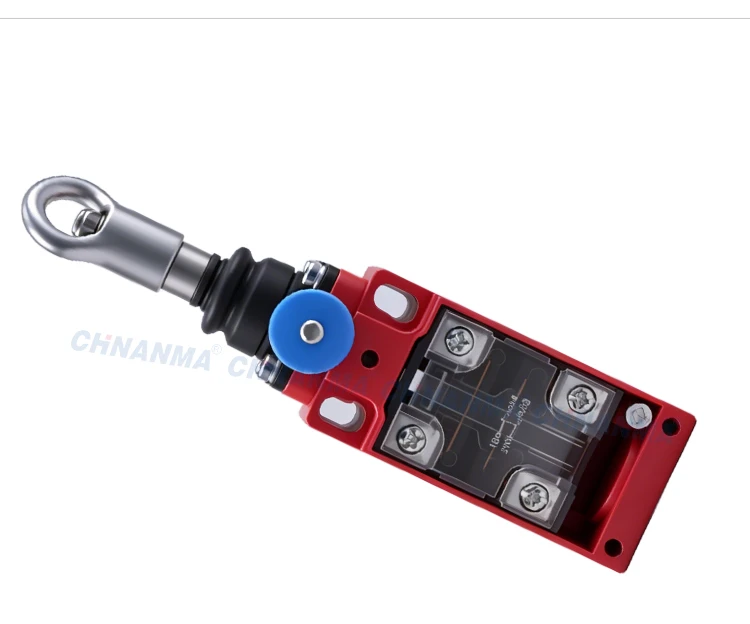

The SN6170-SL-C-R is a cable pull safety switch with manual reset for rope pull emergency stop applications. It mounts on the frame of a conveyor or production line, and a rope runs through its metal pull ring along the length of the run. Pull the rope at any workstation and the contacts change state. The switch then stays in the operated position and does not return on its own. This cable pull safety switch keeps the line stopped until someone walks to the unit and presses the blue reset button on the side of the housing. Mechanical reset must be performed directly on-site at the switch housing; it cannot be triggered remotely from the control cabinet.

Key Specifications
- Rated Conventional Thermal Current: 10 A
- Rated Insulation Voltage: 600 V
- Utilisation Category: A600 AC-15 / Q300 DC-13
- Contact Configuration: 1 NO + 1 NC
- Terminal Markings: 13-14 (NO), 21-22 (NC)
- Enclosure Type: Type 1

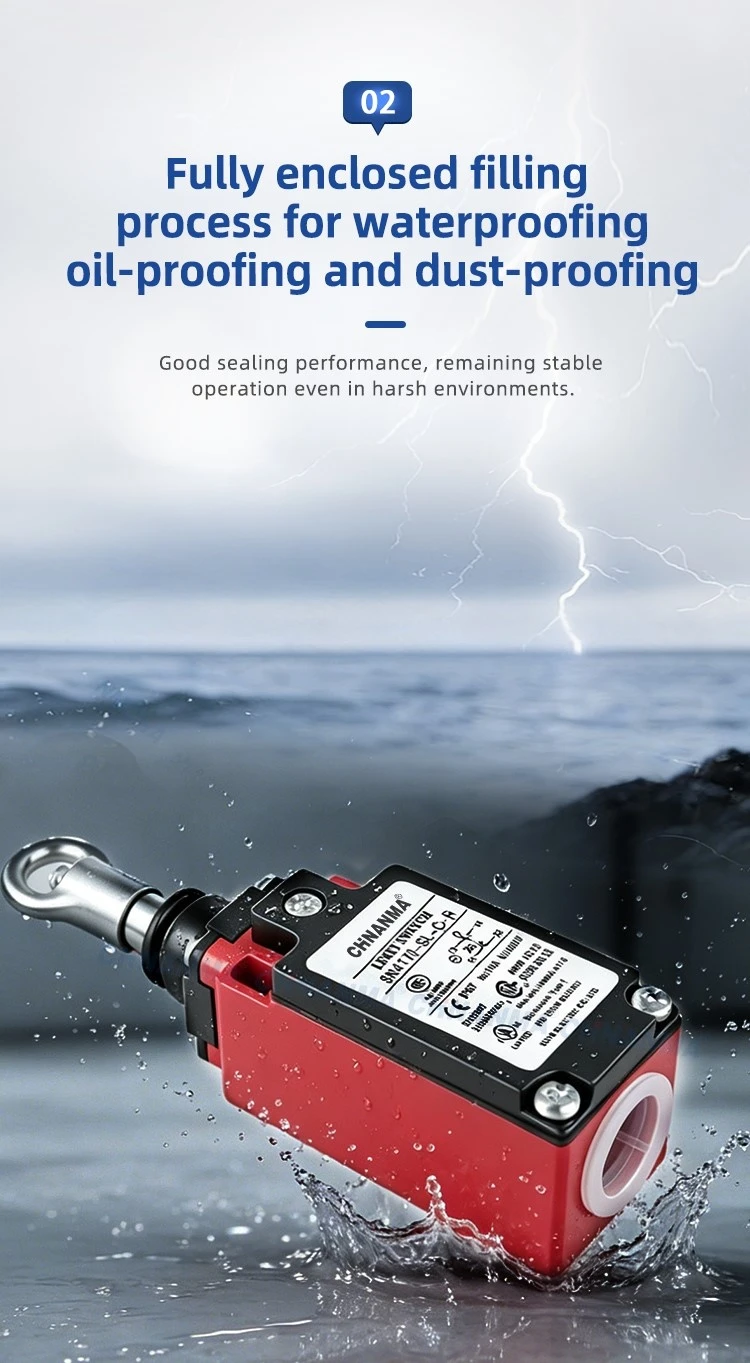

- Ingress Protection: IP67, other IP ratings available on request
- Standards: EN50041, EN60947-5-1

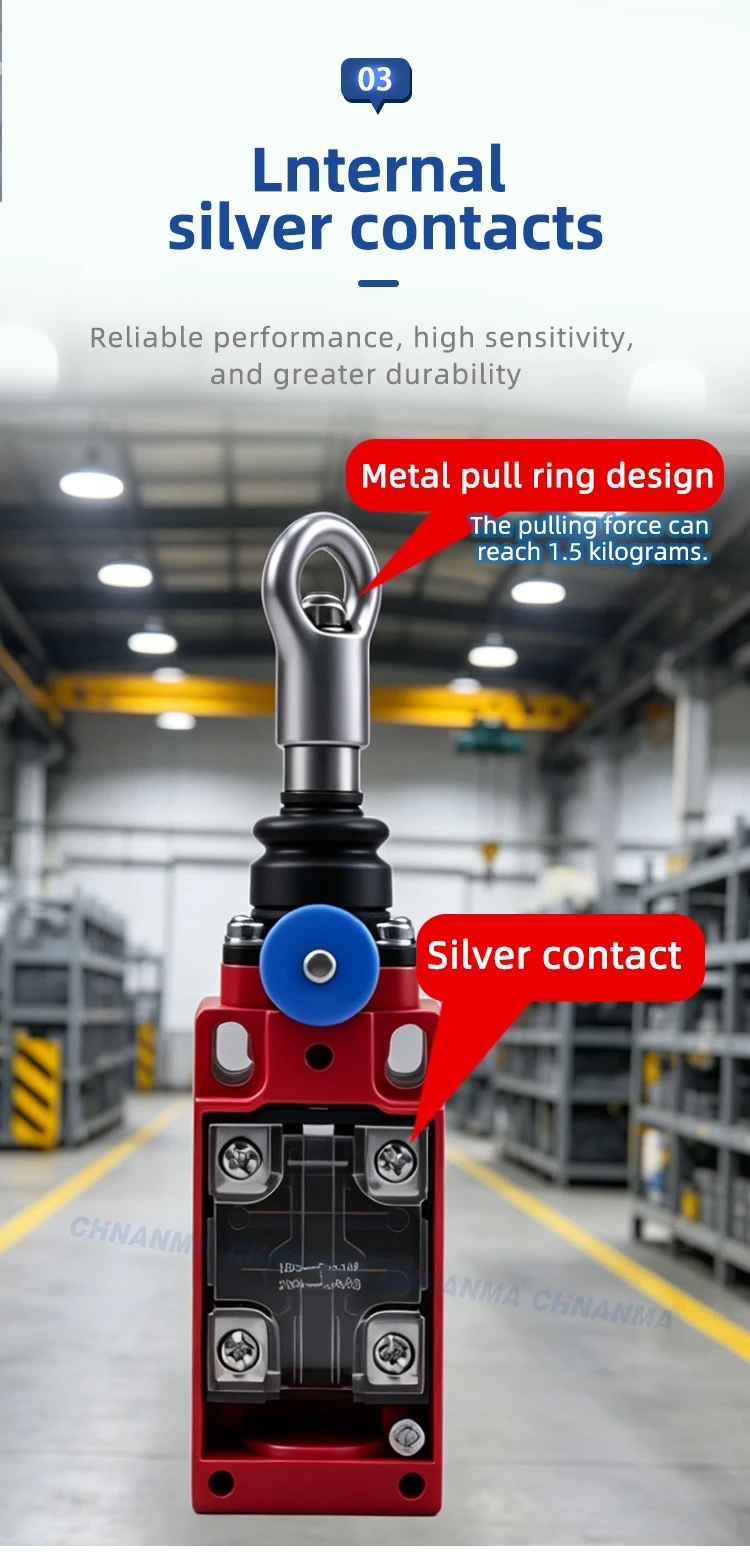

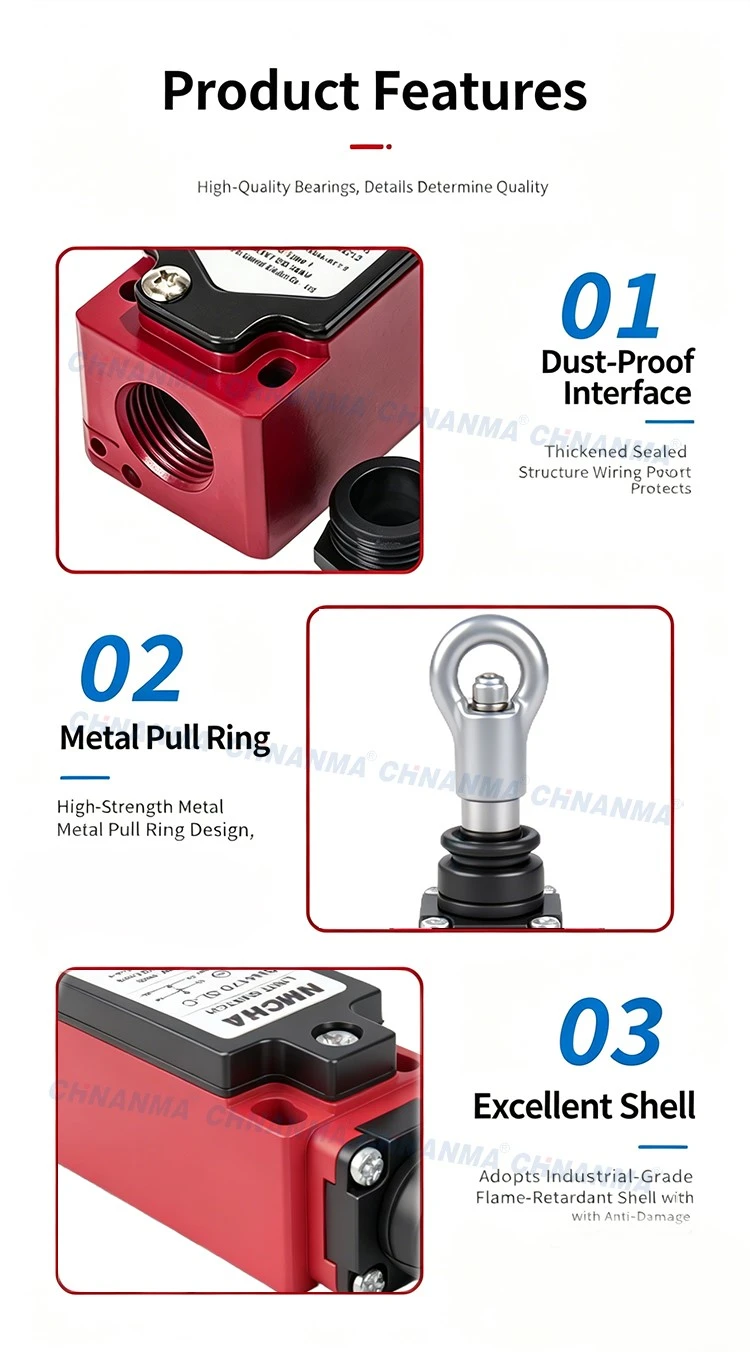

- Operating Force: 1.5 kgf (14.71 N) at the metal pull ring

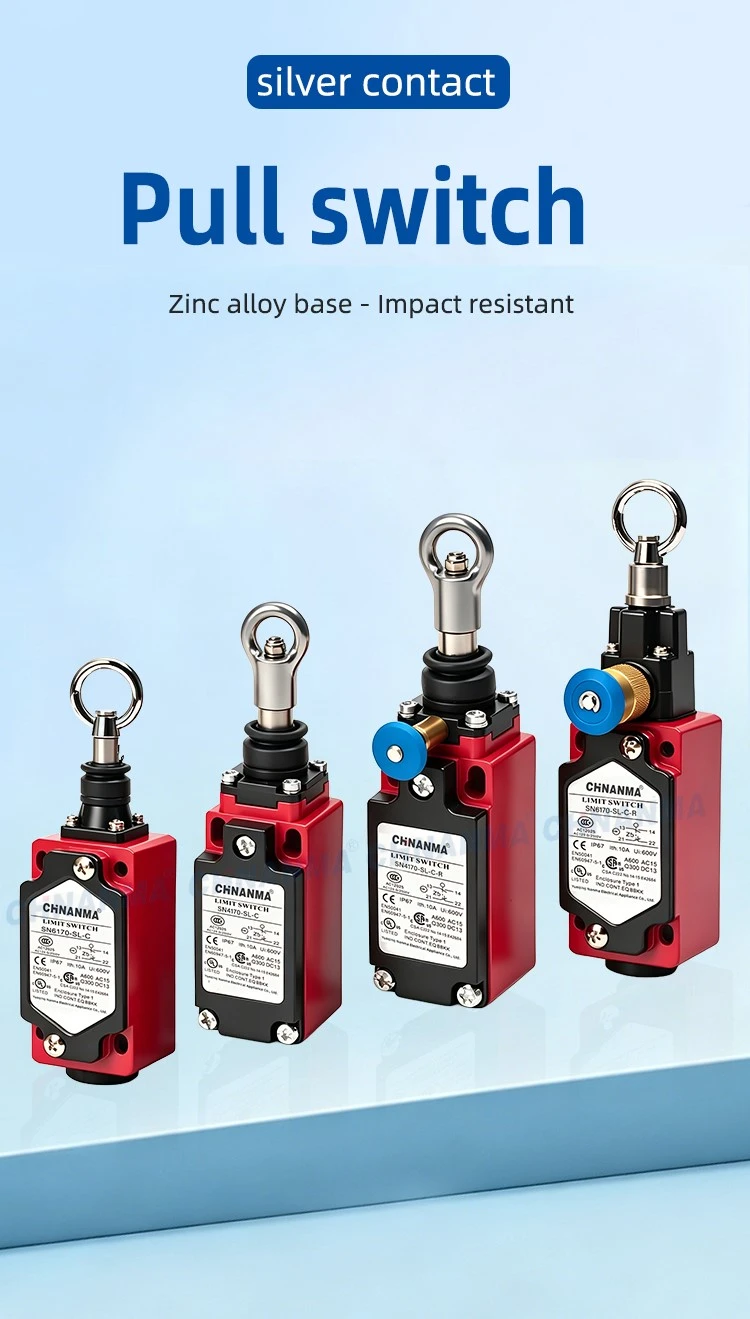

- Enclosure Base: Zinc alloy
- Contacts: Silver contacts
Applications

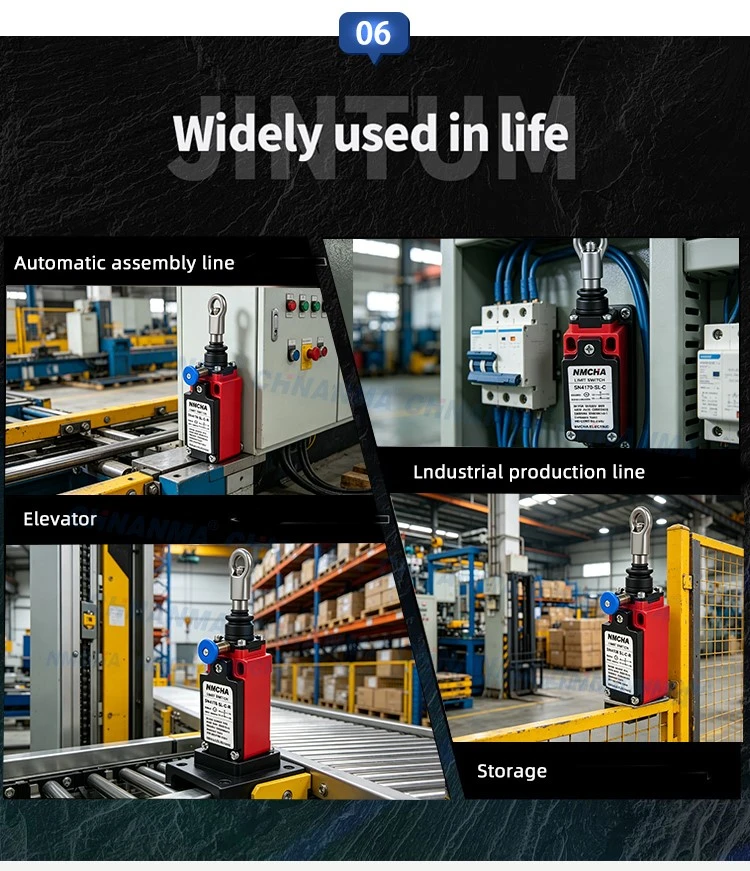

This model is used where an operator has to reach into a guarded area. On industrial production lines, automatic assembly lines and warehouse handling equipment, the rope runs the full length of the run, so the stop can be reached from any workstation. Where the maintenance point sits behind a guard, this manual-reset rope pull safety switch requires on-site mechanical unlocking at the unit. Only personnel who have inspected the hazardous area may reset the cable pull safety switch.
About CHNANMA
Founded in 2001, CHNANMA (Nanma Electric) manufactures industrial control switches, and our cable pull safety switches are produced at a 6,000-square-meter factory in Ruijin, Jiangxi, with our business office in Wenzhou, Zhejiang. This manual-reset rope pull safety switch is manufactured under ISO 9001:2015, ISO 14001 and ISO 45001 management systems and is available with CE, CCC, CB, CQ and RoHS certifications. Supported by our experienced engineering team (30% of total staff), we provide OEM and ODM customization and a one-year product warranty. Send us your application details and we will recommend the right cable pull safety switch for your conveyor or automation project.

FAQ
Q: Can the line be restarted from the control cabinet?
A: No. The contacts stay in the operated position until the reset button is pressed at the housing. This cable pull safety switch cannot be mechanically reset remotely.
Q: How much rope does the run need?
A: Required rope length depends on equipment length and pull-point spacing. Rope is not included. Share your line layout, and we can advise on rope arrangement.
Q: Do you offer samples of the SN6170-SL-C-R cable pull safety switch?
A: Yes, sample service is available. Please share your project information to apply for samples and technical consultation.
