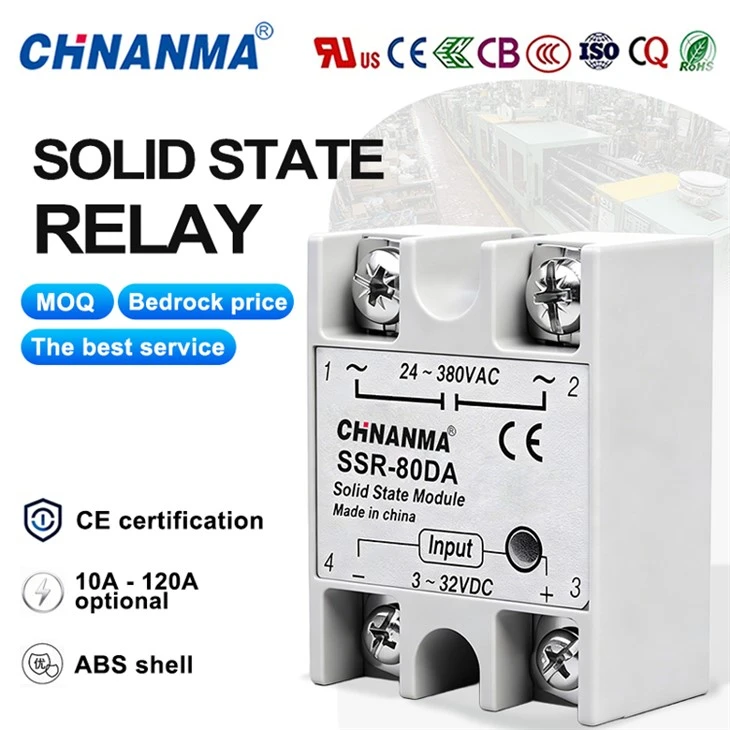

80A SSR Solid-state Relay

Product Introduction

This 80A SSR is contactless, with no wear or sparks. It handles high-power loads and frequent switching well. Built-in chip ensures fast, stable performance with strong anti-interference. The heat & flame resistant shell delivers good insulation and heat dissipation. Perfect for temperature control, heating devices, production lines and high-power lighting.

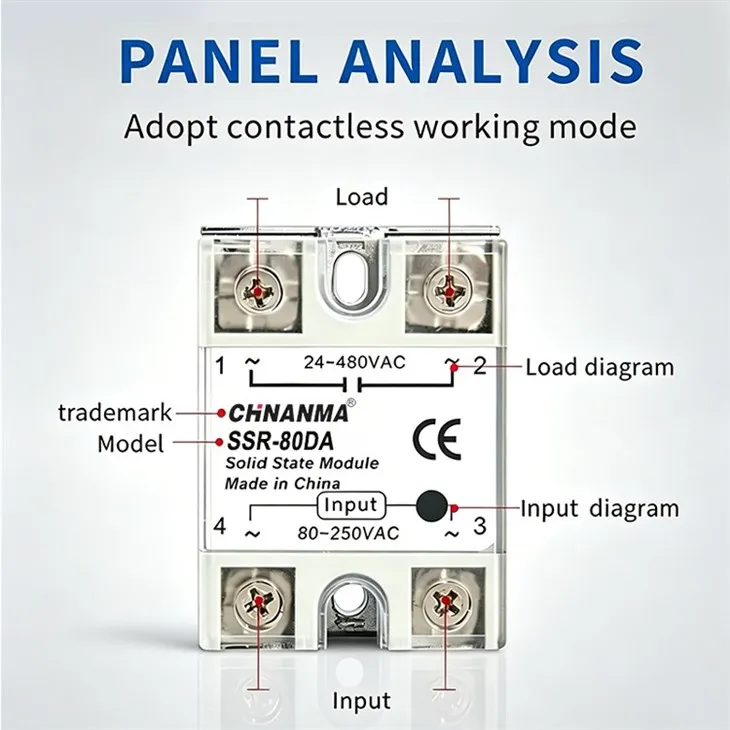

SSR-80DA Solid State Relay Technical Specifications


Product Model: SSR-80DA
Control Method: DC-AC
Input Control Voltage: 3V~32V DC
Input Control Current: 5~20mA
Load Voltage Range: 24V~380V AC
Rated Load Current: 80A
Output Voltage Drop: ≤1.5V
Off-State Leakage Current: ≤1mA
Operating Frequency: 50/60Hz
Insulation Withstand Voltage: ≥2500V AC (Input-Output)
Insulation Resistance: ≥1000MΩ
Operating Ambient Temperature: -30℃ ~ +80℃
Installation Method: Panel Mount
Housing Material: Flame Retardant Engineering Plastic
Cooling Method: Natural Cooling (Requires a dedicated heatsink)
Contact Type: Normally Open (Contactless Semiconductor Switch)

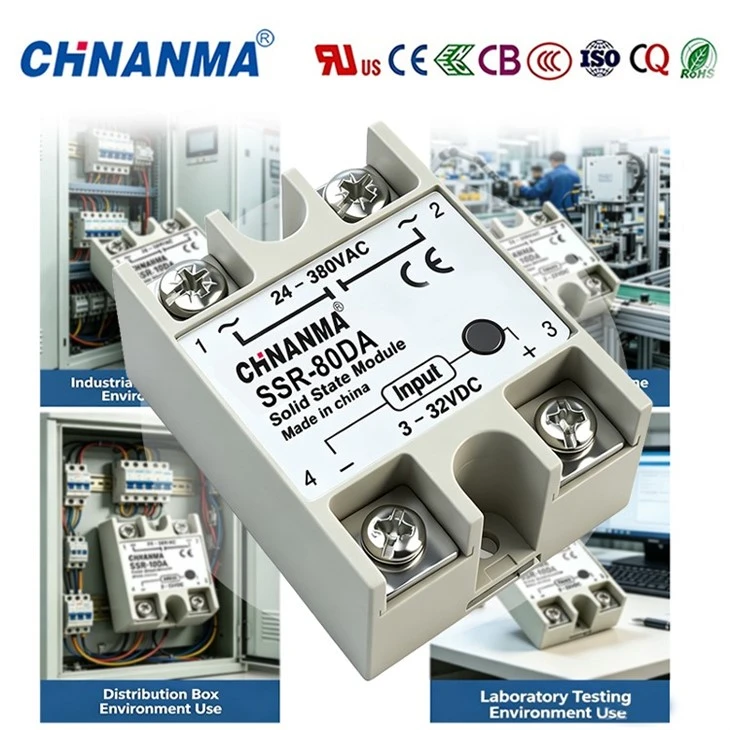

Typical Application Scenarios for SSR Solid State Relays:


1. Industrial Temperature Control Systems

2. Industrial Heating Equipment

3. Automated Production Lines

4. High-Power Lighting and Power Supply Control

5. Motor and Pump Control

6. Other High-Power Industrial Applications

Core Product Advantages:
Flame/heat resistant and well insulated. Great isolation resists interference. Low-power DC-AC control fits PLC & MCU. CE/RoHS approved.


SSR-80A Solid State Relay Usage Precautions

1. Derating: For the 80A model, it is recommended to operate at 60%-70% of the rated current to avoid prolonged full-load operation and extend service life.

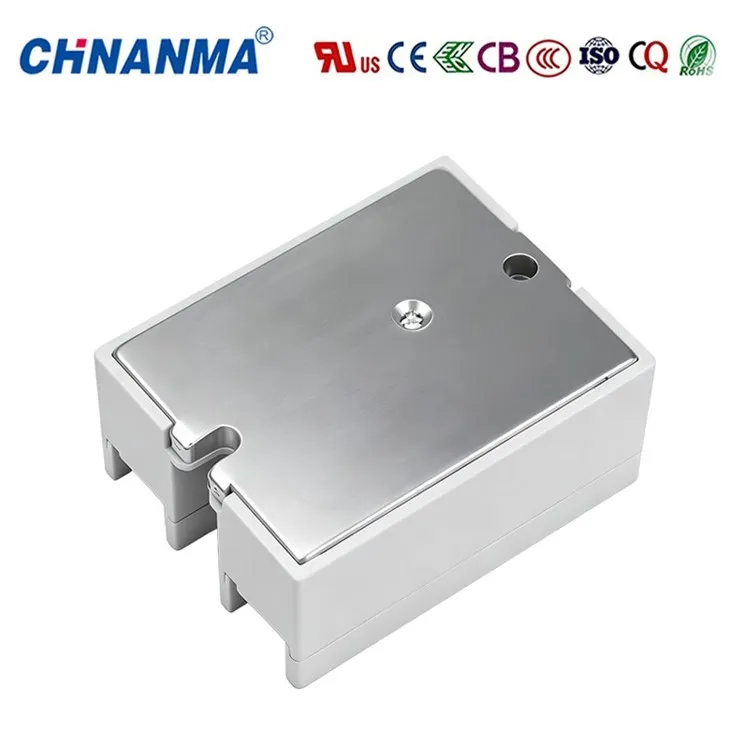

2. Heatsink Required: A dedicated heatsink must be installed vertically. Apply thermal grease to the contact surfaces to ensure good heat dissipation and prevent overheating damage.

3. Inductive/Capacitive Load Protection: When controlling loads such as motors and heating elements, an RC snubber circuit or varistor must be connected in parallel at the load terminal to suppress surge impacts.

4. Proper Wiring: Strictly distinguish between input and output terminals; reverse connection is strictly prohibited. Terminals must be tightened to prevent overheating and damage to the device due to loose connections.

5. Control Signal Requirements: The control terminal must provide a stable 3V~32V DC signal to avoid malfunctions caused by excessive voltage or signal jitter.

6. Operating Environment Restrictions: Avoid use in humid, corrosive gas, strong electromagnetic interference, or high-temperature (-30℃~+80℃) environments.
7. Safety precautions for live operation: Disassembly or repair is strictly prohibited while the circuit is energized. If the casing is deformed or the terminals are burned, the power must be cut off immediately and the device replaced.
