Product Introduction
Electrical Parameters

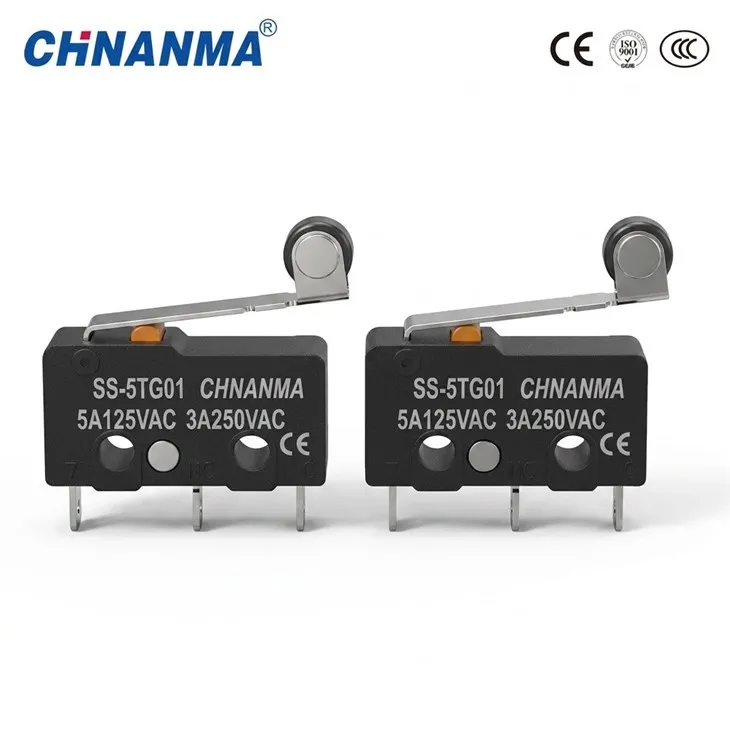

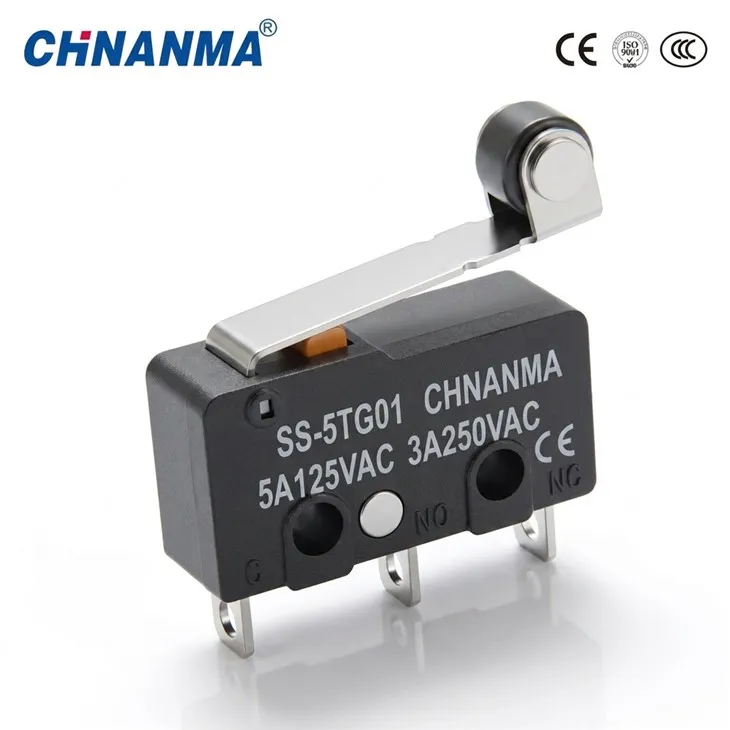

Model: SS-5TG01 (Micro switch with roller lever)

Electrical Parameters
Rated Load: 5A 125VAC / 3A 250VAC
Connection Structure: Three-pin type, 1 normally open contact + 1 normally closed contact (COM common + NO normally open + NC normally closed)
Certifications: CCC, CE, ISO9001, compliant with international electrical safety standards
Mechanical Life: ≥1 million opening and closing cycles, lever-driven triggering, sensitive sensing

Structural Composition

Roller and Rocker Arm Drive Component: A wear-resistant plastic roller is added to the end of the metal rocker arm. External force pushes the roller to drive the internal button; lateral force is sufficient to turn the switch on and off.

Black Flame-Retardant Engineering Plastic Shell: Injection molded from high-temperature flame-retardant PA material, providing insulation, anti-aging properties, and preventing leakage risks.

Three-Pin Straight-Through Metal Terminal: COM/NO/NC standard straight-through pins, suitable for PCB board soldering and wire harness connection.

Built-in Silver Alloy Moving and Static Contacts + Spring-Driven Structure: The spring's instantaneous bounce achieves contact opening and closing, providing good arc extinguishing and stable conductivity.

Product Features
Roller-Lever Drive Structure, Adaptable to Lateral Limit Trigger: The roller structure can withstand lateral pressure from cams and sliders without vertical pressing, making it ideal for equipment travel limit control and mechanical locking detection. It provides smooth force application and prevents jamming.

Flame-Retardant Insulating Housing, Safe for Electrical Use: The high-temperature resistant, flame-retardant housing isolates the circuit from leakage, making it suitable for complex electrical environments such as home appliances, industrial control equipment, and instruments.

Silver Alloy Contacts, Durable and Arc-Resistant: The contacts are oxidation-resistant and arc-resistant, withstanding millions of cycles of switching without burning. The contact resistance remains stable over long-term use.

Standard Three-Prong Universal Wiring, Strong Compatibility: One normally open and one normally closed connector are integrated, allowing for flexible switching of signal circuits and compatibility with microswitches of the same specifications available on the market.

Compact and Sleek Design, Convenient Installation in Multiple Scenarios: The housing has pre-drilled mounting holes for both screw fixing and snap-fit installation. It can be installed even in confined spaces, making it widely used in small home appliances, automation equipment, and security limit devices.
