Endstop Microswitch

Product Introduction:

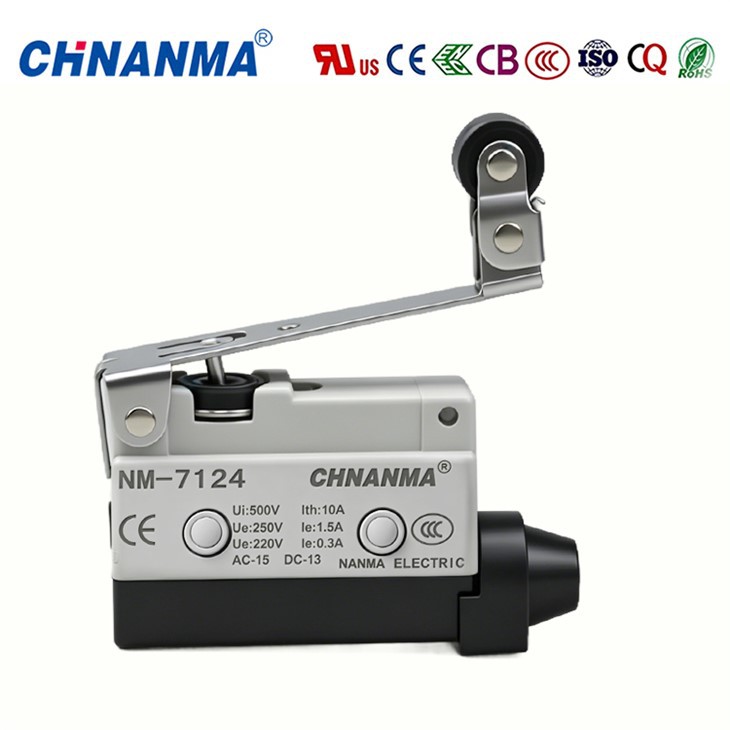

NM-7124(TZ-7124 AZ-7124) Short Roller Hinge Lever Waterproof Micro Switch

An endstop microswitch is a sensor that is used in 3D printing, CNC machines, and other types of automated systems. It is located at the end of the axis on the machine and is used to accurately determine the position of the machine. When the machine reaches a certain limit or end of its travel, the endstop microswitch is activated, triggering the system to stop moving in that direction. This prevents the machine from damaging itself or the object being worked on by going too far in one direction. Endstop microswitches can be mechanical, optical or magnetic and are essential for precise and accurate movement control in automated systems.

An endstop microswitch is also called limit switch. It is an external mechanical force acting on the Action spring leaf through the transmission elements (push pin, button, lever, roller, etc.)

When the action spring moves to the critical point, it produces instantaneous action, which makes the moving contact and the fixed contact at the end of the action spring quickly connect or disconnect.

When the force exerted on the drive element is removed, the action spring generates a reverse action force. When the reverse stroke of the drive element reaches the critical point of the spring, the reverse action process is completed instantly.

Features:

●Small contact distance, short action stroke, small pressing power and quick on-off.

●High mechanical strength,impact resistance.

●Various of actuators, action position is adjustable.

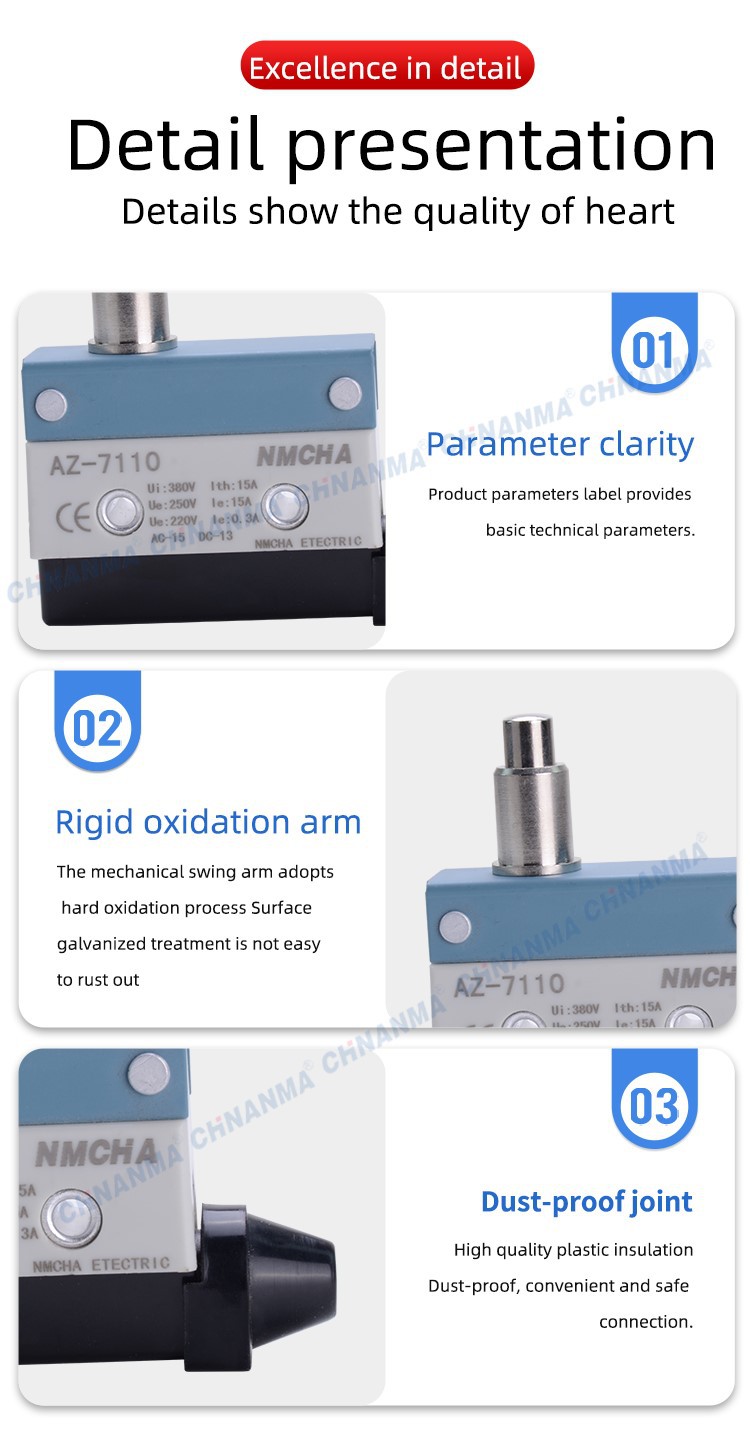

Product details :

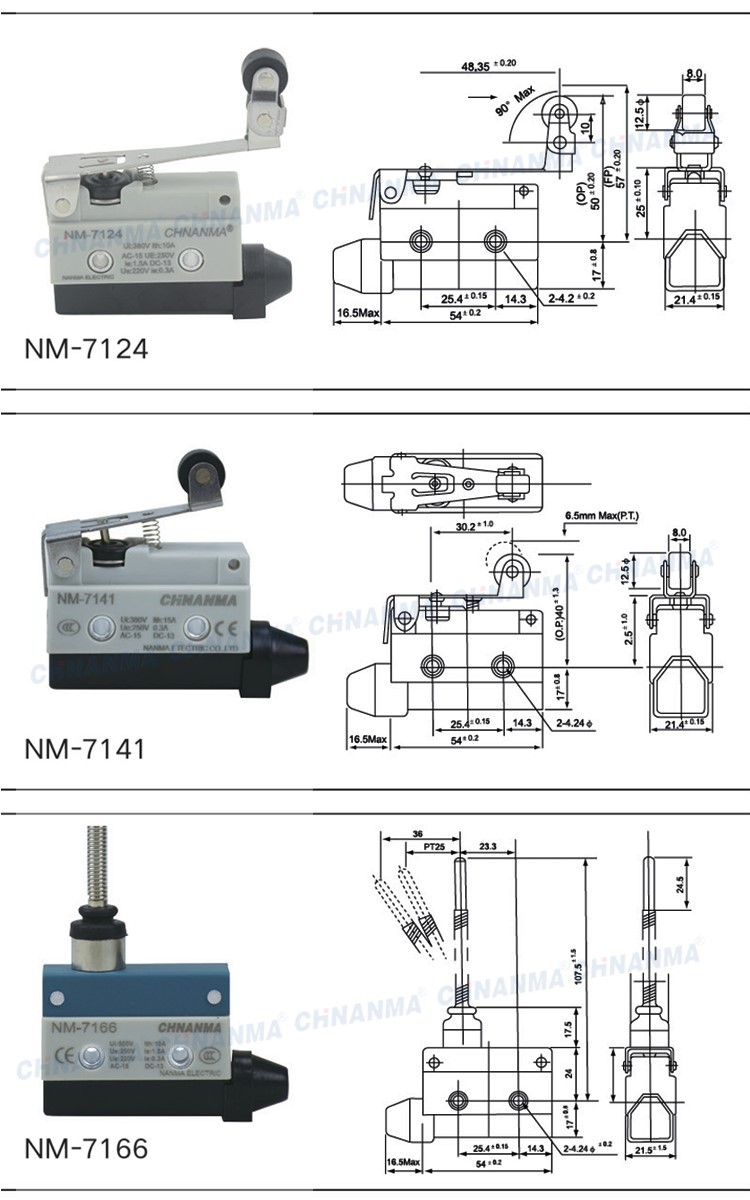

Technical Specification:

Our after-sales service:

1.Free instruction for installation and debugging.

2.When receiving feed backs from users, make satisfactory answers and solutions within the shortest possible time.

3.Our product is guaranteed for one year ,Quality problems are guaranteed to be returned, replaced and repaired.

4.Real-time understanding of the use of the product to help solve the problems encountered in the use of the process, and solicit quality and technical improvement advice, in order to better serve customers.
