Product Introduction:
NM-7120 （TZ7120 AZ7120) Long Lever Push Plunger Waterproof Micro Switch
15A Micro Switch, also known as a snap-action switch, is a small electrical switch that is activated by a very small physical force, such as a light touch or a change in pressure. When the switch is activated, the contacts inside it snap open or closed, providing an electrical connection or breaking it. 15a Micro Switch is commonly used in a wide range of applications, such as in appliances, automotive components, vending machines, gaming machines, medical equipment, and industrial machinery. They are known for their durability, precision, and sensitivity, and are often used as safety switches or limit switches.
As the name suggests, uses a very small force switch. 15A Micro Switch is a switch that the external mechanical force acts on the action spring through the transmission element, so that the fixed contact and the moving contact at the end of the spring can be quickly connected or disconnected.
It has micro contact spacing and quick action mechanism. The contact mechanism which uses specified stroke and force to switch is covered by the shell. There is a transmission outside, and its shape is small.
It consists of five elements. The contact spacing is small and the torque is large. Generally, there is a driving rod on the outside.
Features:
●Various of actuators, action position is adjustable.
●Wide range of operation speed.

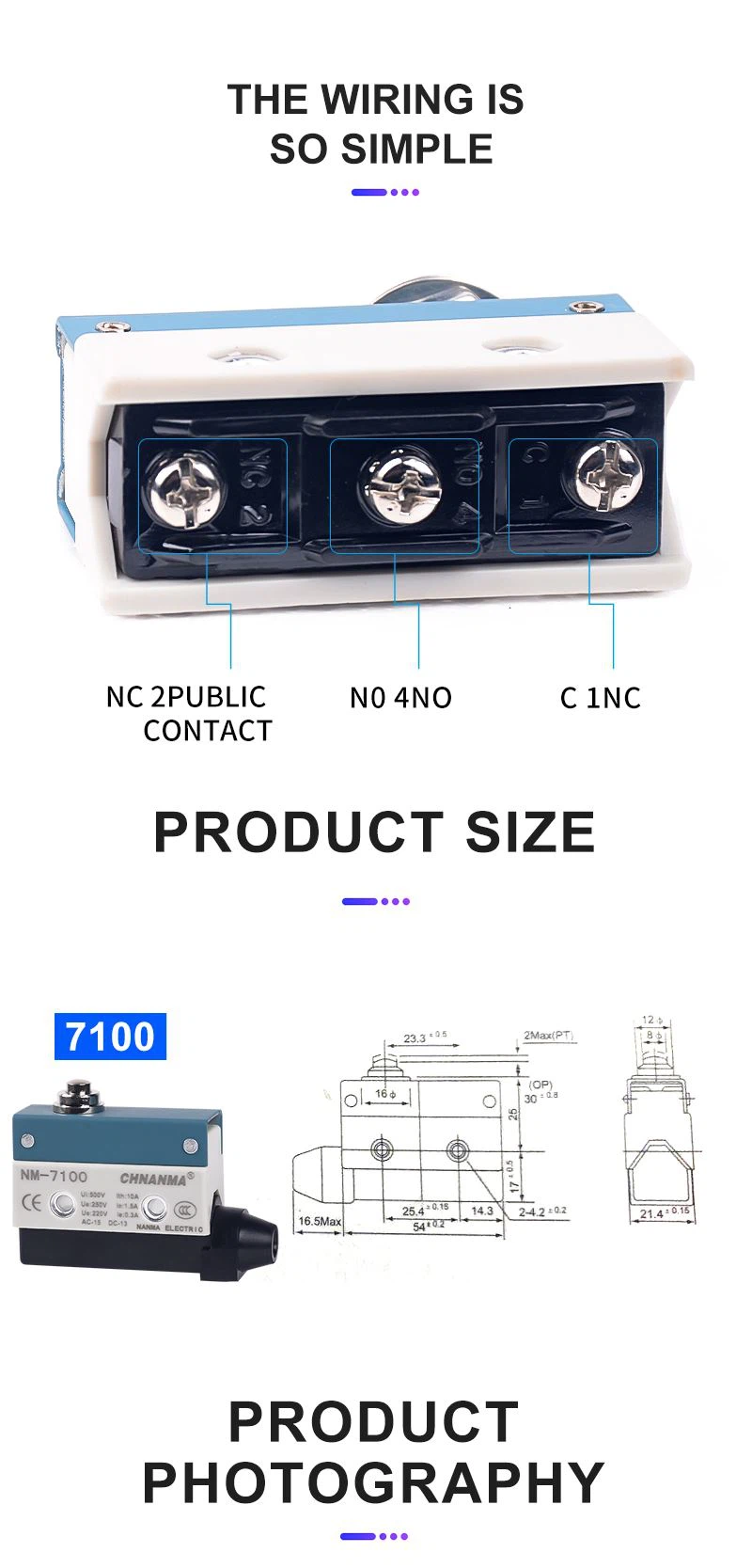

●Easy-to-wire circuit opening design.

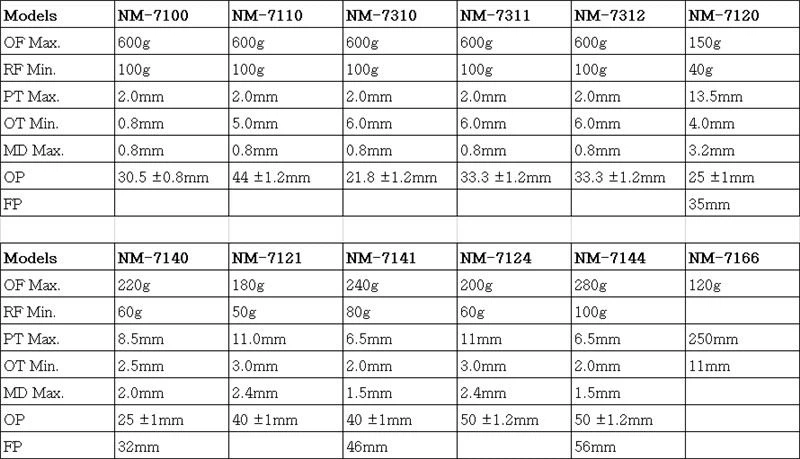

Technical Specification:
Our Pre-sales services:
1.Free instruction for installation and debugging
2.When receiving feed backs from users, make satisfactory answers and solutions within the shortest possible time.
3.Our product is guaranteed for one year ,Quality problems are guaranteed to be returned, replaced and repaired.
4.Real-time understanding of the use of the product to help solve the problems encountered in the use of the process, and solicit quality and technical improvement advice, in order to better serve customers.
Product details :
