Product Introduction:

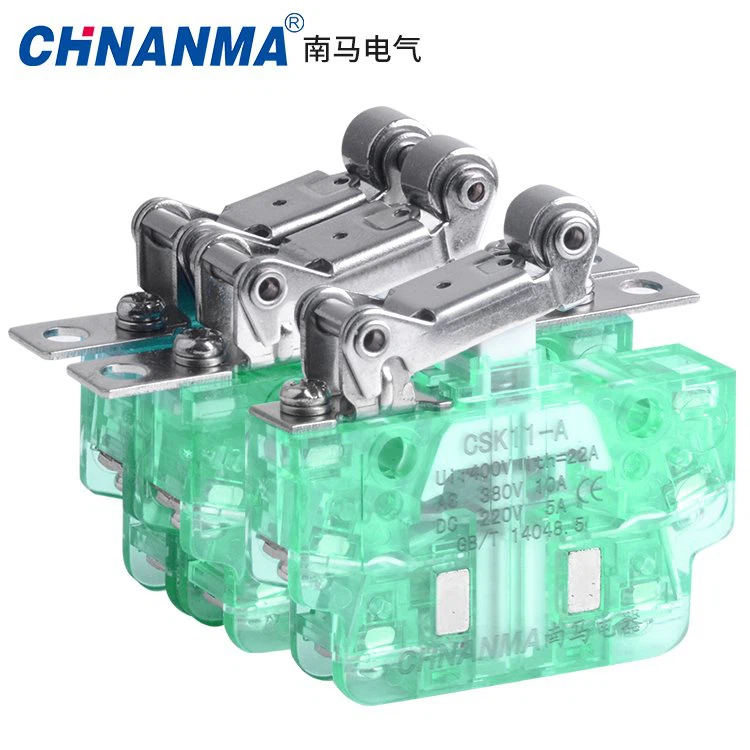

NMCSK11-A push rod plunger type Magnetic blowout switch

Csk1 series magnetic blow (micro) switch is a new product developed by our company, which can replace the imported similar products. The contact is sensitive, reliable, high precision, long service life and beautiful appearance. The quality and technical index of the product has reached the advanced level of imported similar products.

Scope of application: suitable for control circuit or auxiliary circuit with rated working voltage of AC400V and DC voltage of 250V, rated working current of ac-122a, ac-156a, dc-125a, dc-131.1a. When the change-over contacts are used at the same time, it is recommended to connect them to the same phase circuit. The product is widely used in electrical, mechanical and electrical circuits, as the control of electromagnet or inductive load.

An magnetic limit switch is a type of switch that uses a magnet to trigger the switch mechanism. The switch typically consists of a reed switch or Hall effect sensor and a magnet. When the magnet is brought close to the switch, it activates the switch and causes it to open or close. Magnetic limit switches are commonly used in industrial machines and automation systems to detect the presence or absence of objects. They are also used in home appliances and security systems to detect opening and closing of doors and windows.

Features:

●Permanent magnet arc extinguishing device.

●Flat shape. Modular installation.

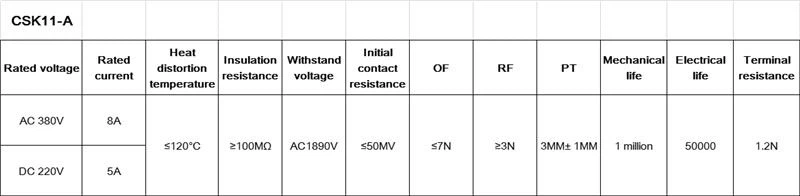

Technical Specification:
