Product Introduction:

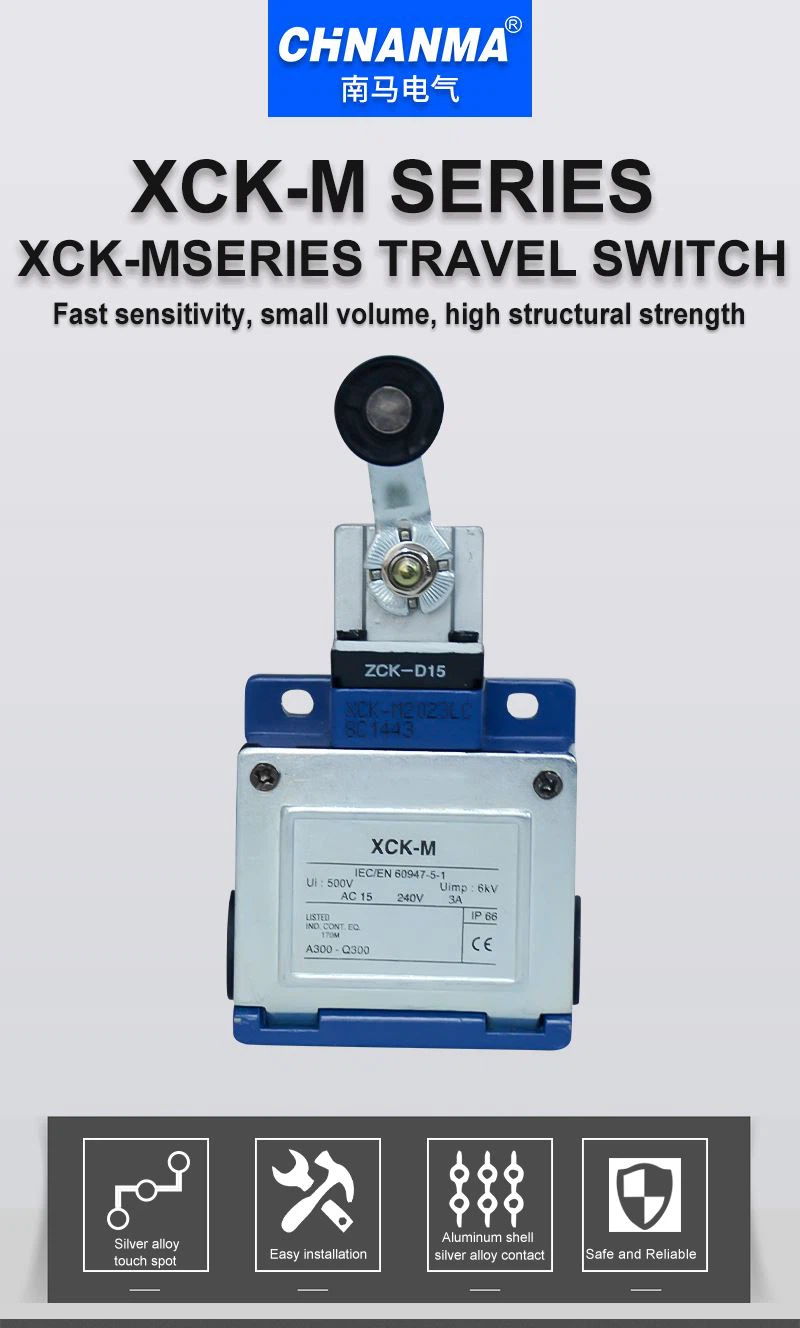

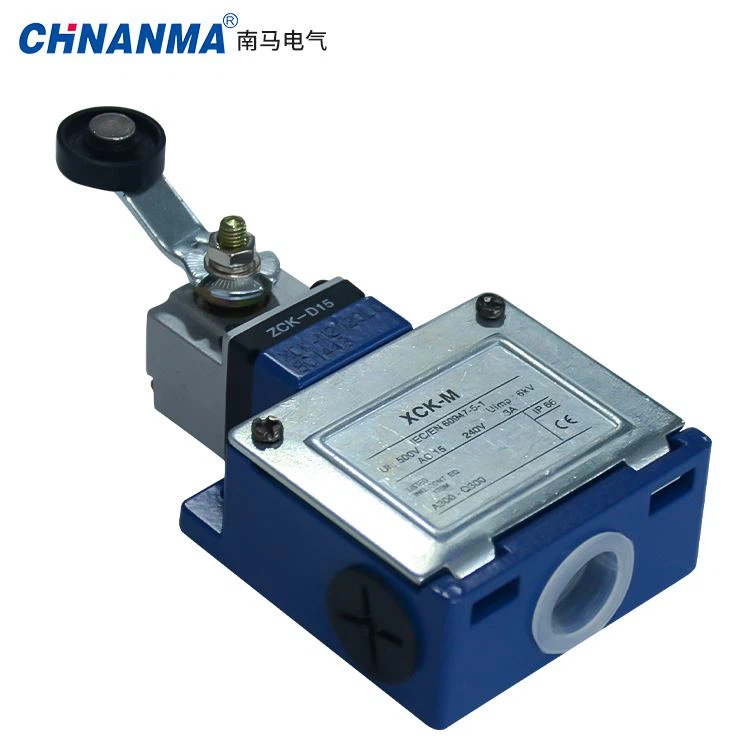

XCK-M115(ZCK-D15) Metal Thermoplastic Roller Tumbler Electrical Miniature Limit Switch

The 12v Dc Limit Switch shell adopts special alloy metal, suitable for AC 50 ~ 60Hz: AC380V, dc220v, AC 10A control circuit, as the automatic control of machine tools and machinery, limiting movement, transmission mechanism action or program control.

Metal Thermoplastic Roller Tumbler Electrical Miniature Limit Switch is a type of switch that uses a roller tumbler mechanism to provide a simple and reliable solution for controlling the movement of machinery and other devices. It is typically used in applications where a small switch is required to detect or control the position of moving components.

The 12v Dc Limit Switch is composed of a metal or thermoplastic body containing a set of contacts that are triggered by the movement of the roller tumbler. This mechanism consists of a small roller or ball that moves back and forth along a spring-loaded arm, based on the position of the moving component it is monitoring.

When the roller tumbler comes into contact with the arm, it causes the arm to move and activate the switch. 12v Dc Limit Switch can be used to trigger a variety of actions, such as stopping a motor or activating an alarm.

The miniature size of the switch makes it ideal for use in tight spaces, as it can be easily mounted in a small area. Additionally, the switch is designed for high reliability and durability, ensuring that it operates consistently over long periods of use.

Overall, the Metal Thermoplastic Roller Tumbler Electrical Miniature Limit Switch is a versatile and reliable switch that can be used in a wide variety of applications where small, precise control is required.

Features:

●It has the function of forced disconnection.

●Permanent magnet arc extinguishing device.

●The protection level is IP65.

Technical Specification:
