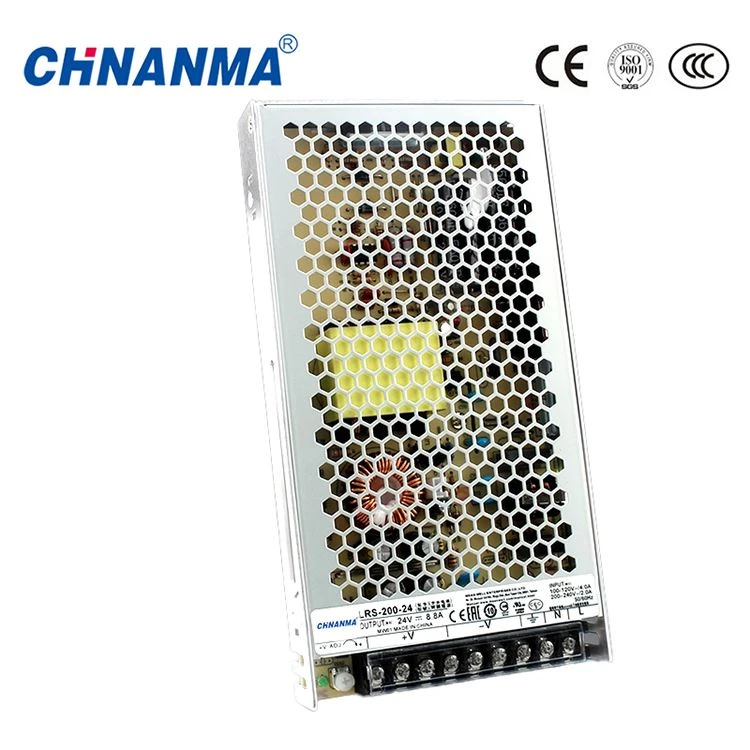

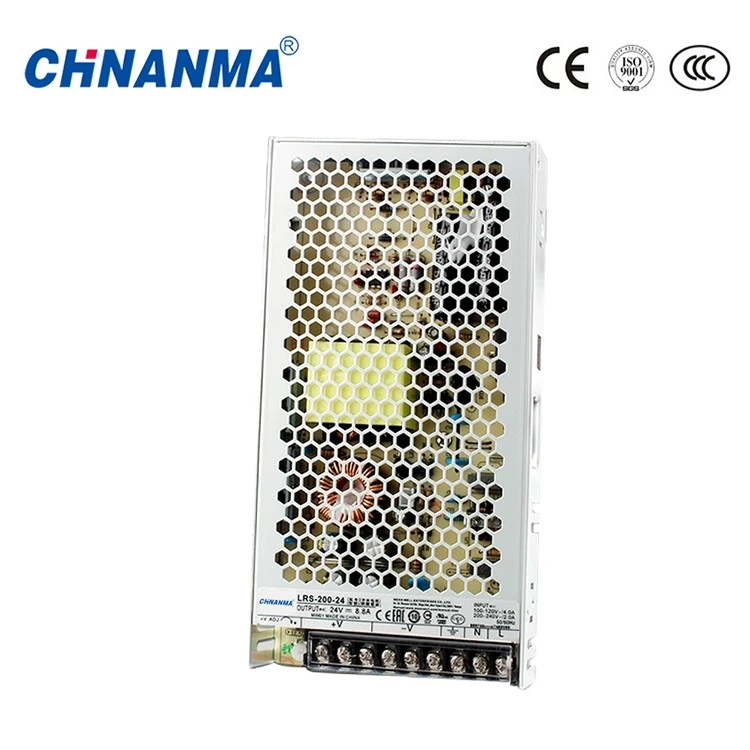

200W 24V DC LRS Industrial Switching Power Supply

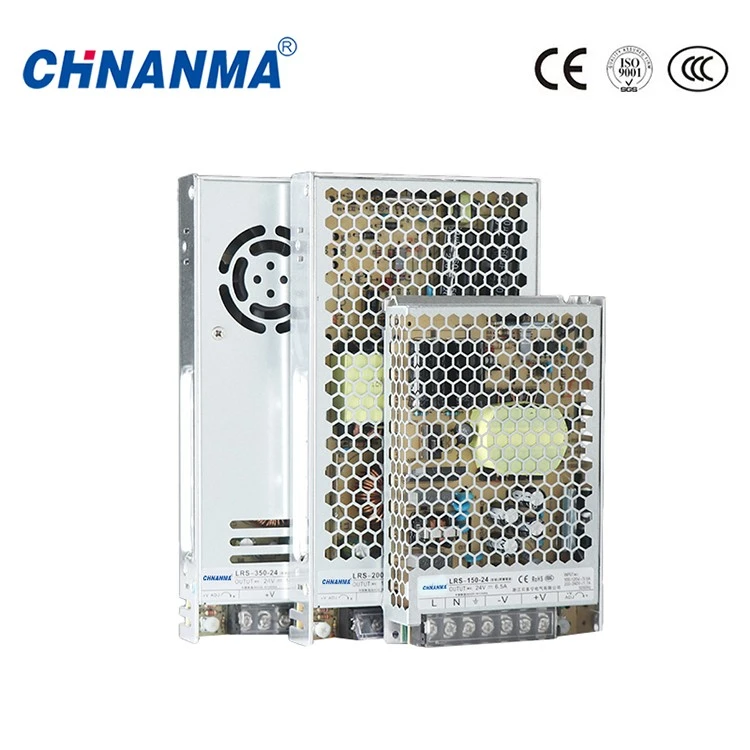

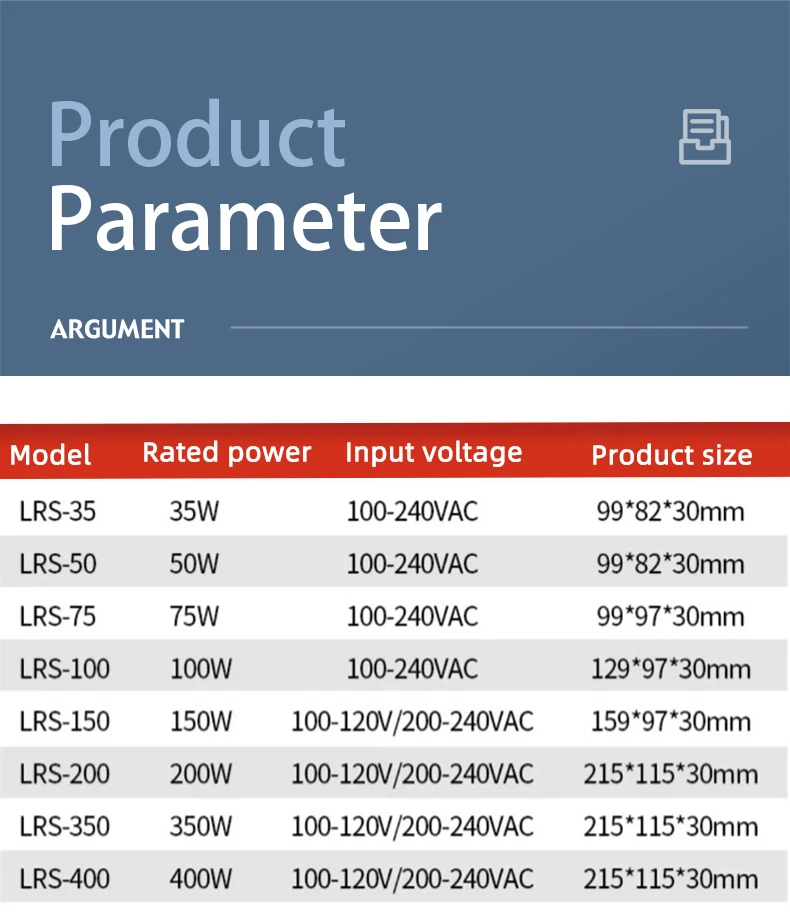

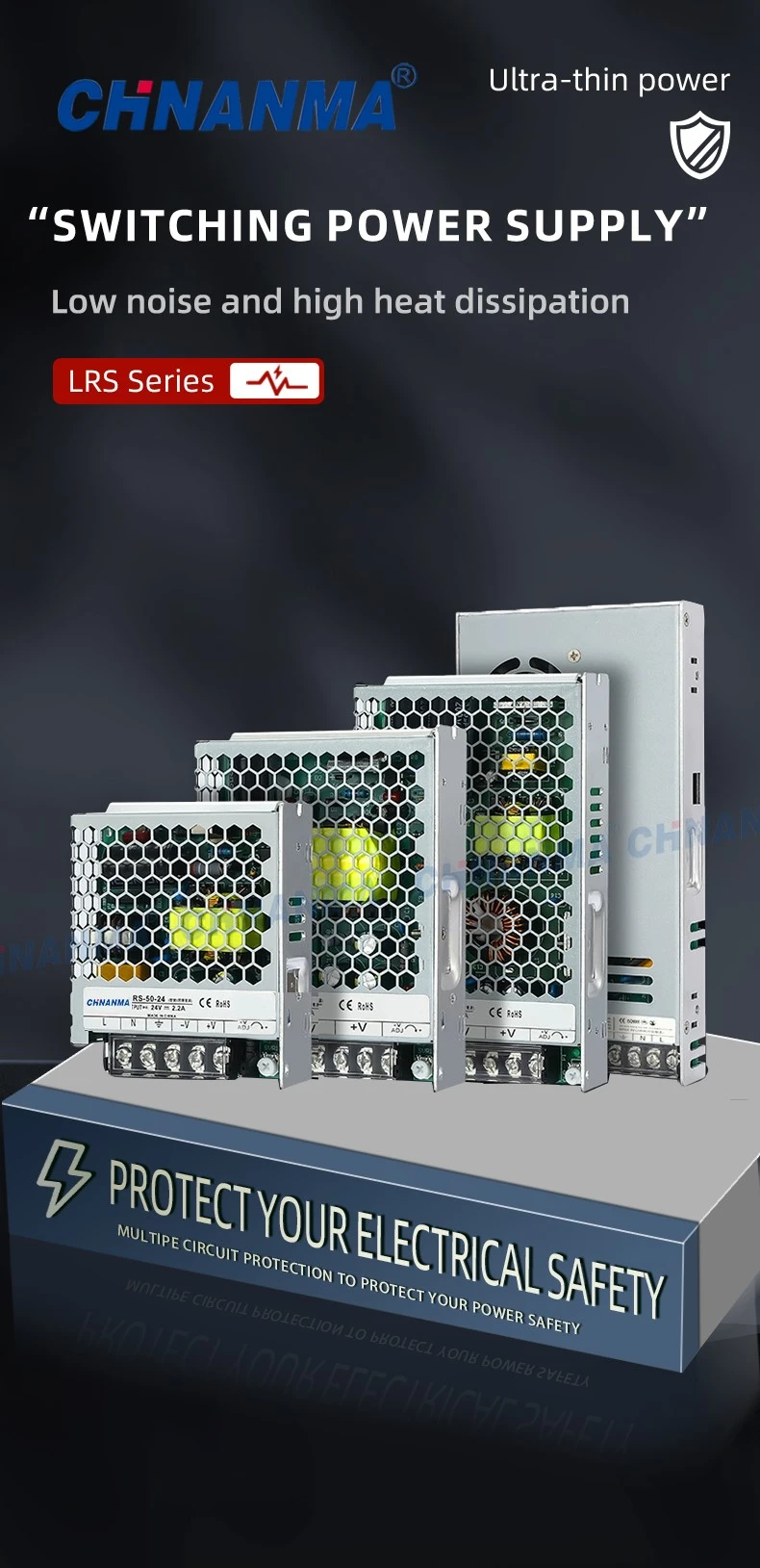

Built for automation and tele‑communication hardware where mounting space is tight, this 24V 200W industrial power supply outputs 24 V DC at 8.8 A. As one standard unit within the LRS‑series lineup, its slim body can be housed inside many 1U‑height equipment enclosures and narrow control cabinets. While this unit delivers 24V output, alternative 12V, 36V and 48V variants from the same LRS‑series are available to satisfy different industrial‑site requirements.

Technical Specifications
The LRS-200-24 switching power supply follows these parameters：
- Brand: CHNANMA
- Model: LRS-200-24
- DC Output: 24V 8.8A (Adjustable via +V ADJ )
- Rated Power: 211.2W Max (200W class)
- AC Input: 100-120V / 200-240V AC (Selectable via manual toggle switch)
- Cooling Method: Natural convection cooling (Fan-less operation)

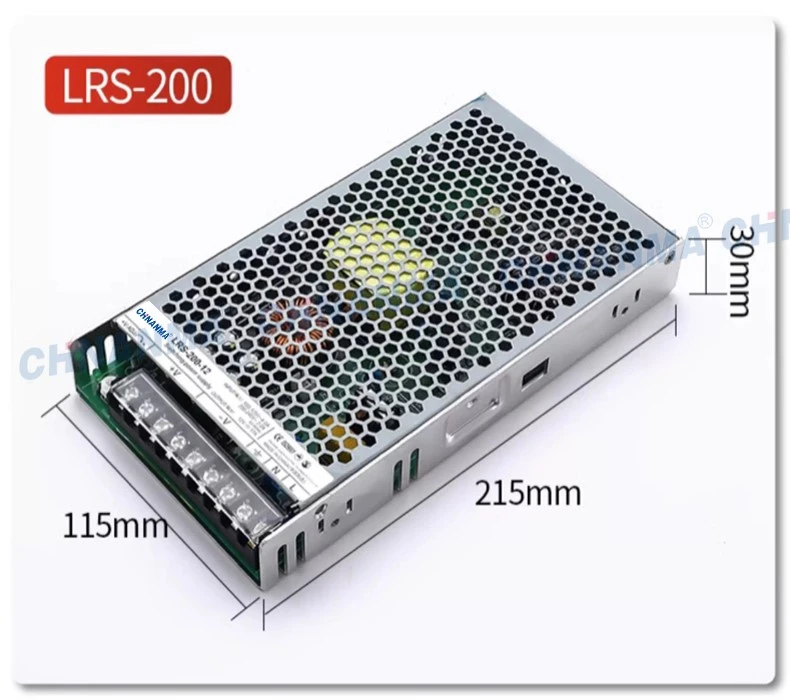

- Dimensions: 215 * 115 * 30 mm (30mm height slim power supply)
- Protection: Short-circuit, Overload, Over-voltage, Over-temperature
- Certifications: CE, CCC, EAC, RoHS
- Materials: Pure copper transformer, pure copper coil, green fiber circuit board, circuit capacitors
Note: Check the input voltage switch before power on to avoid unit damage.
Design and Heat Dissipation

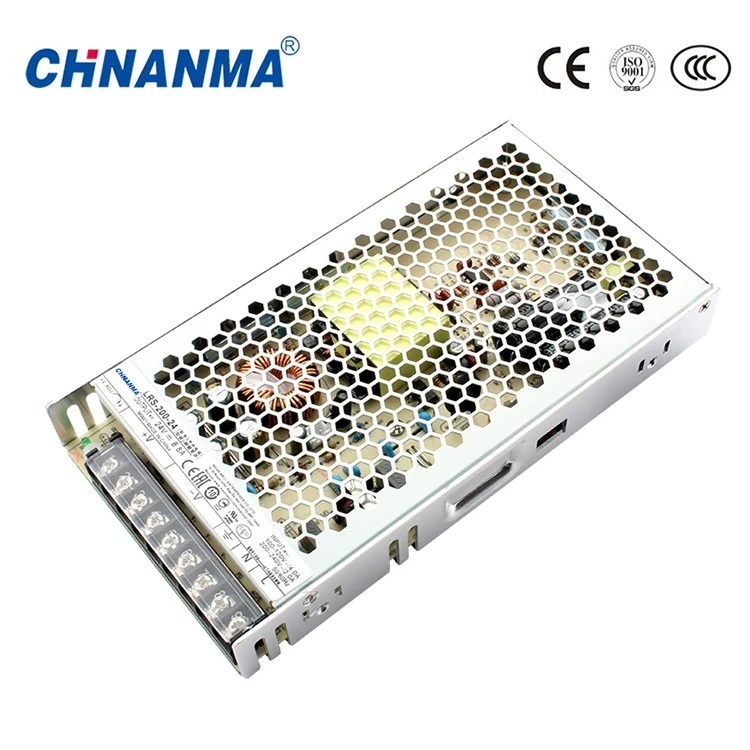

At 30 mm in height, this low‑profile 200W power supply fits equipment with limited internal clearance. The Honeycomb‑mesh casing enables passive natural convection; no fan is required for operation.
Internal Build

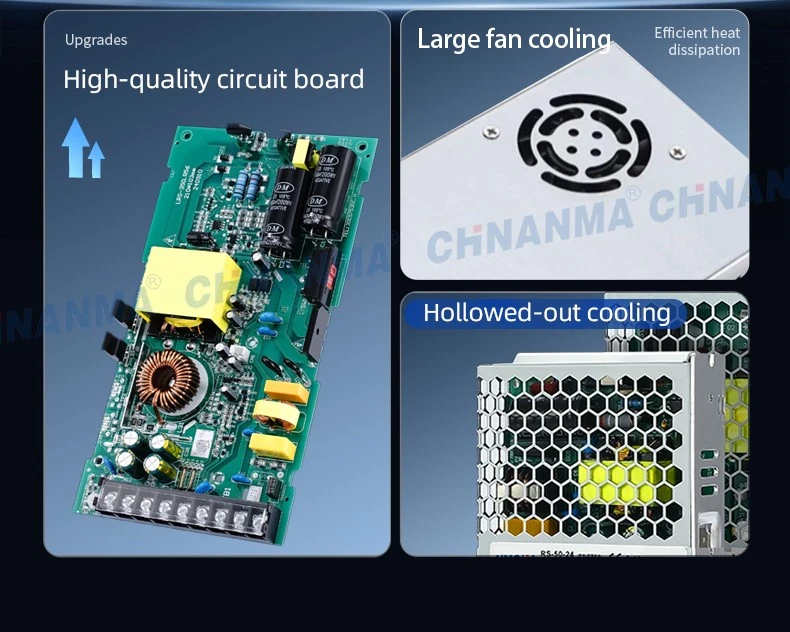

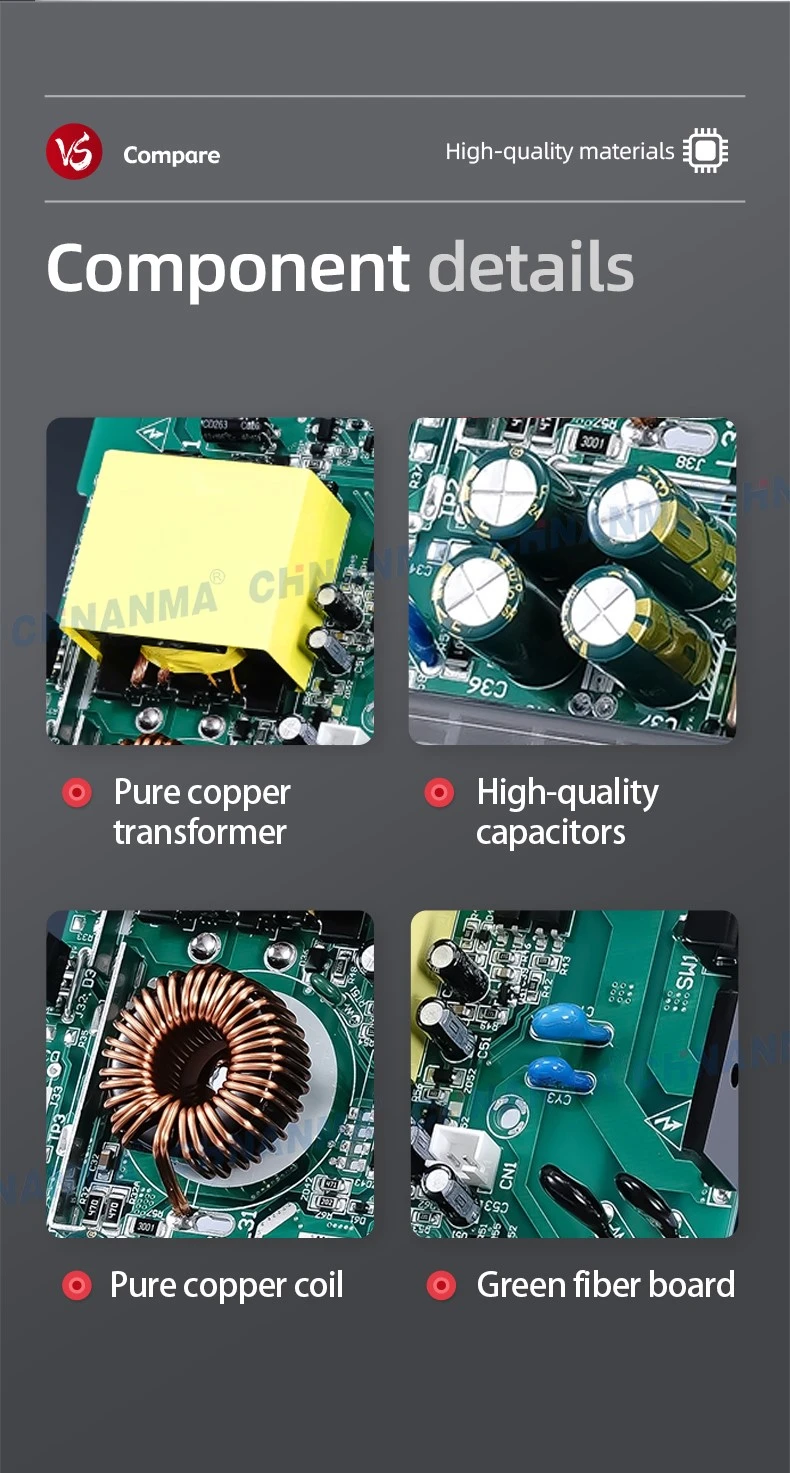

As the direct manufacturer, CHNANMA builds each 24V 200W industrial power supply with pure copper transformers and copper windings internally. The ventilated metal mesh housing supports natural heat dissipation during operation.
Production Background
CHNANMA has focused on switching power supplies and automation‑control solutions since 2001. We manufacture this 200W 24V DC switching power supply in‑house. Consistent quality‑control procedures run through the whole production cycle, and every unit completes full‑load burn‑in testing prior to shipment. Our facility holds ISO9001 system certification. Products in the LRS series carry CE, CCC, EAC and RoHS certifications to support cross‑border B2B procurement. This AC‑DC enclosed power supply is widely deployed for industrial automation hardware, 3D‑printer assemblies, LED sign installations and security CCTV hardware.

FAQ

Q: What internal components are used for this power unit?
A: It adopts pure copper transformer, pure copper coil, circuit capacitors and green fiber board.

Q: Can I switch the input voltage manually?
A: Yes. Input voltage can be toggled between 100-120V AC and 200-240V AC by the side switch on the power supply.

Q: What are the dimensions of LRS-200-24 switching power supply?
A: Dimension: 215 * 115 * 30 mm, fits many 1U-related equipment enclosures.
