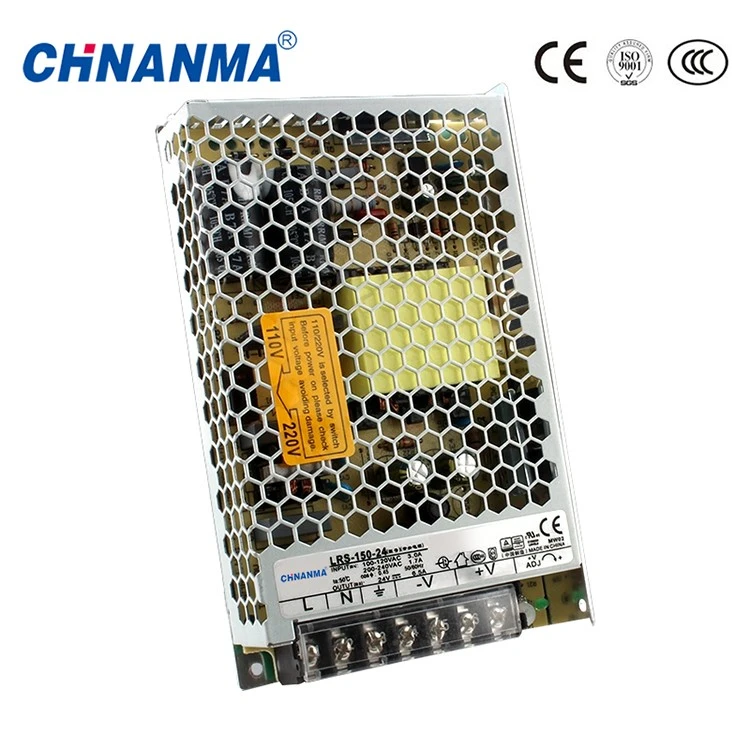

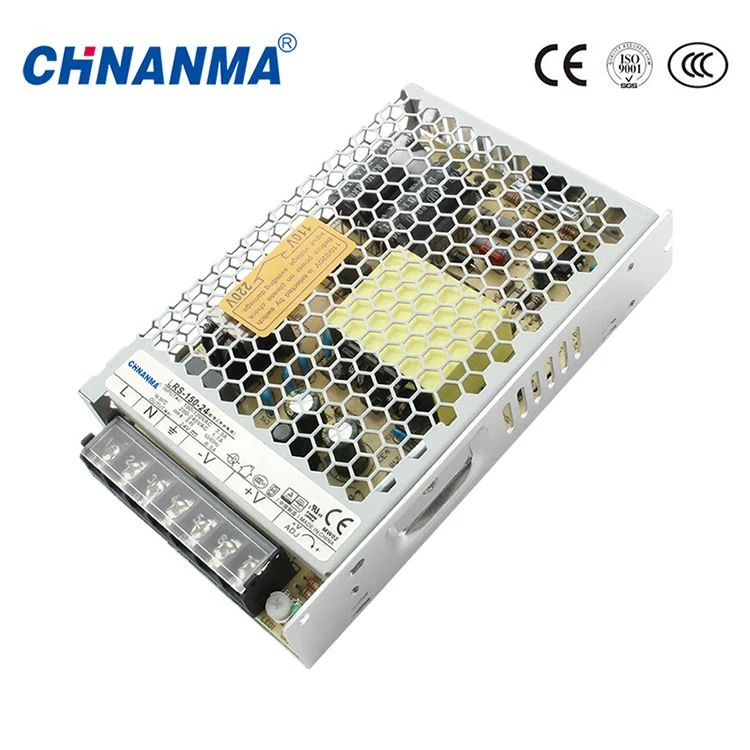

150W 24V DC LRS Industrial Power Supply

The LRS-150-24 switching power supply is a reliable 24V 150W industrial power supply built for dense equipment layouts. As a core member of the LRS series power supply lineup, it provides a stable 24V DC output with a 6.5A current capacity. This AC-DC enclosed power supply features an ultra-low profile design, fitting inside many 1U-height equipment enclosures and slim industrial cabinets where mounting space is limited. While this model is 24V, alternative voltage outputs including 12V, 36V, and 48V from the same series are available for different requirements.

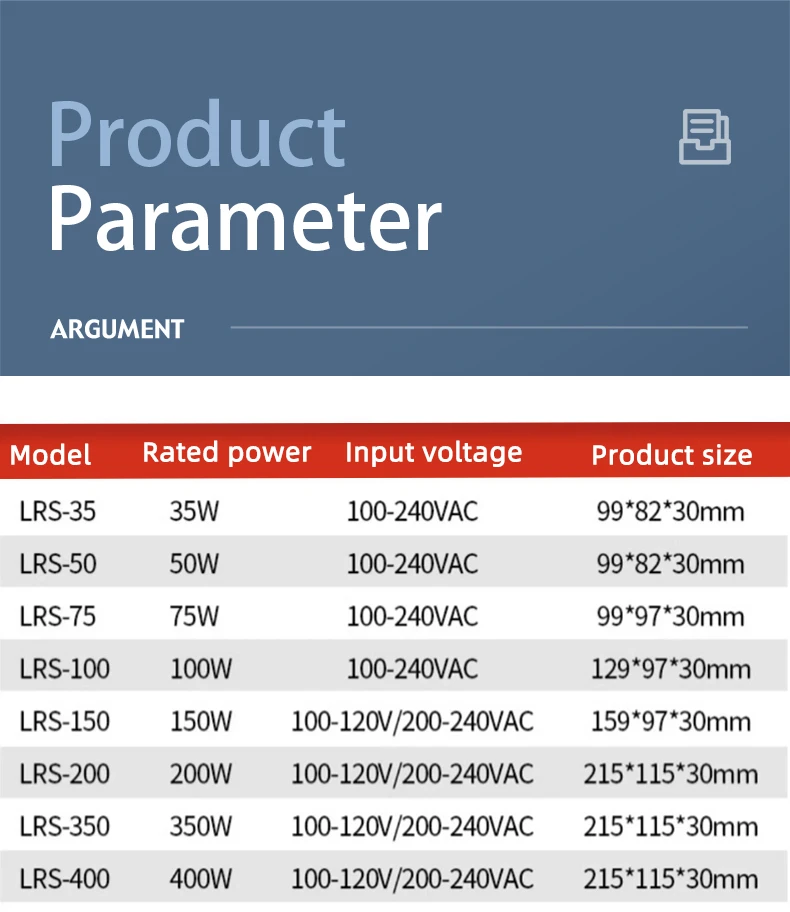

Technical Specifications
Below are the technical parameters of the LRS-150-24 switching power supply:

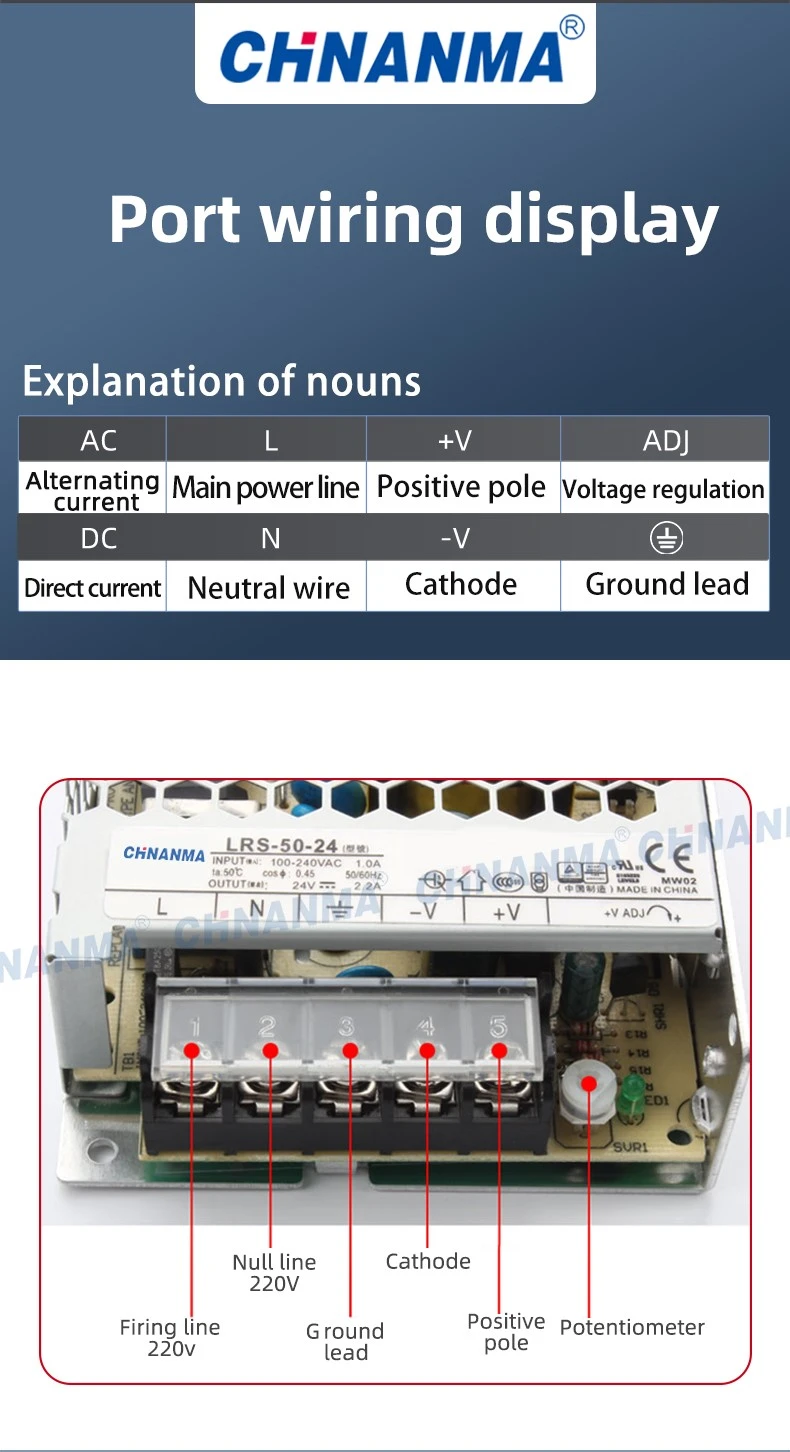

DC Output: 24V 6.5A (Adjustable via +V ADJ)
Rated Power: 150W Max (150W 24V DC switching power supply series)
AC Input: 100-120VAC/ 200-240VAC (Input range selectable by switch)
Cooling Method: Natural convection cooling (Fan-less)
Materials: Pure copper transformer and copper windings

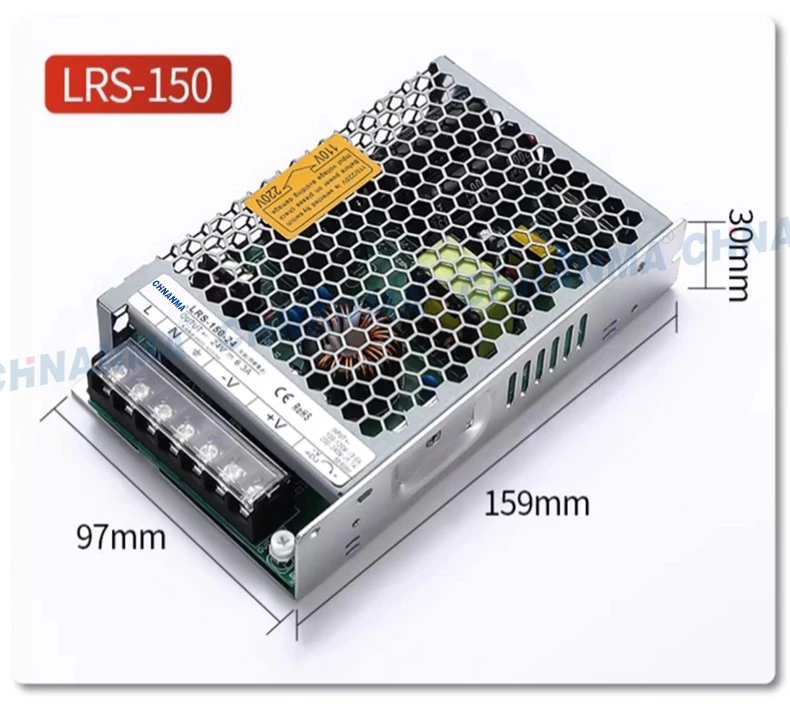

Dimensions:159 * 97 * 30 mm
Note: Please check the built-in selector switch before power-on to avoid unit damage.

Physical Design and Heat Dissipation

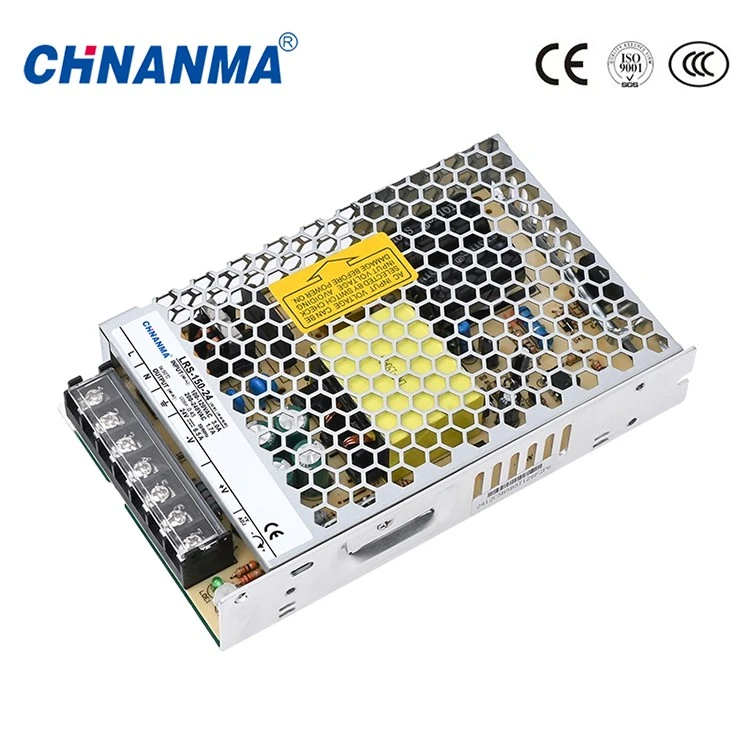

At only 30 mm in height, this low profile 150W power supply suits equipment with limited internal clearance. Its ventilated metal mesh casing supports natural convection cooling and enables quiet running and heat dissipation for continuous industrial operation.

Operating Notes

This LRS‑150‑24 switching power supply is equipped with a built‑in input‑voltage selector switch. Always confirm the switch position matches your local AC mains voltage prior to power‑on. This AC‑DC enclosed power supply shall work within its 150W rated power scope; continuous operation beyond maximum load is not allowed.
Maintain sufficient clearance around the casing for heat dissipation. Avoid installation in heavily dusty, oily‑vapor or high‑humidity environments without proper protective measures. Keep the unit within rated ambient temperature for long‑term continuous operation.
Material Integrity and Factory Standard

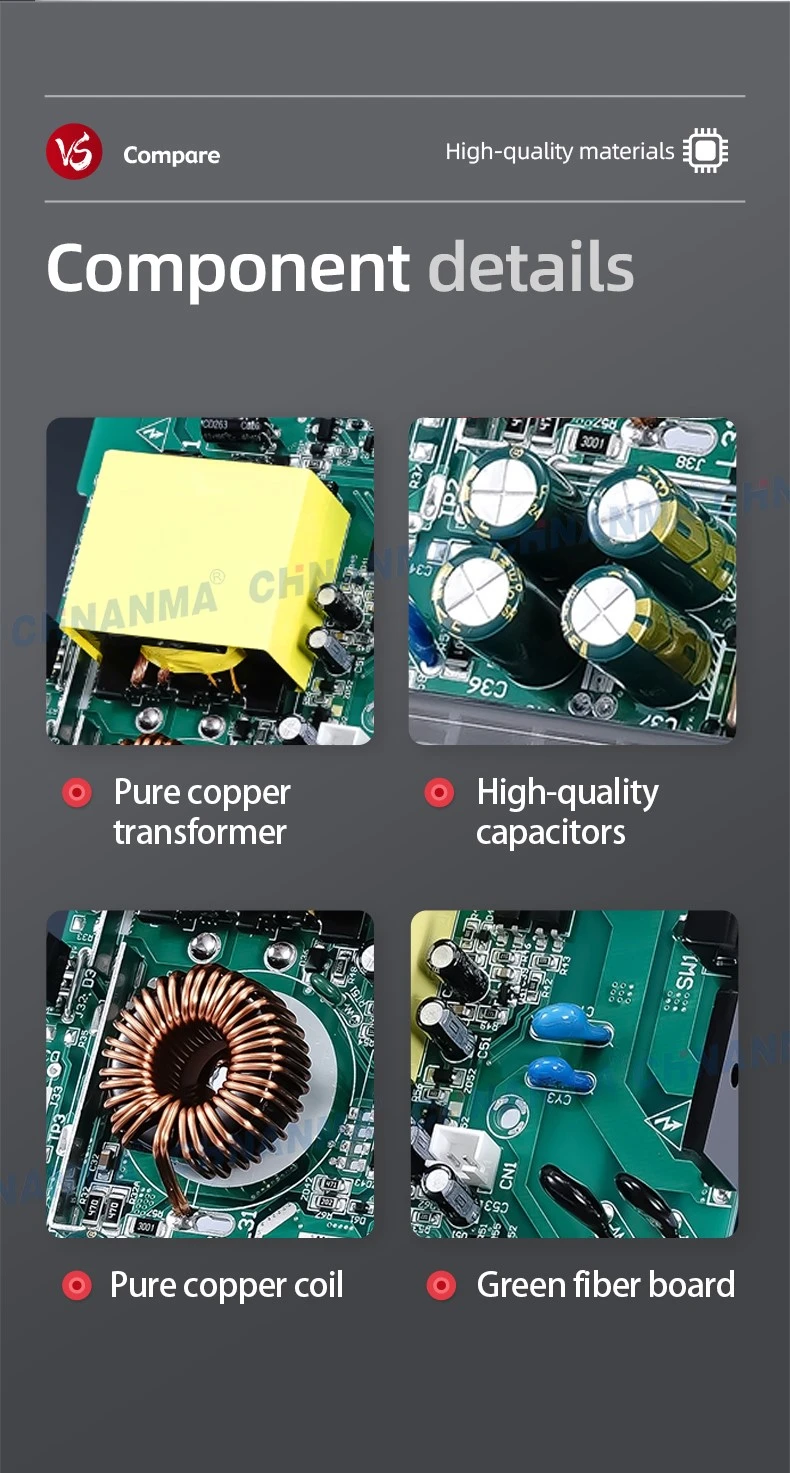

Manufactured by CHNANMA, each 24V 150W industrial power supply utilizes pure copper transformers for stable current transmission. The ventilated metal housing supports natural heat dissipation and delivers steady power output for long-hour deployment. This AC-DC enclosed power supply is suitable for industrial automation, 3D printers, LED signage, and security CCTV systems.

FAQ

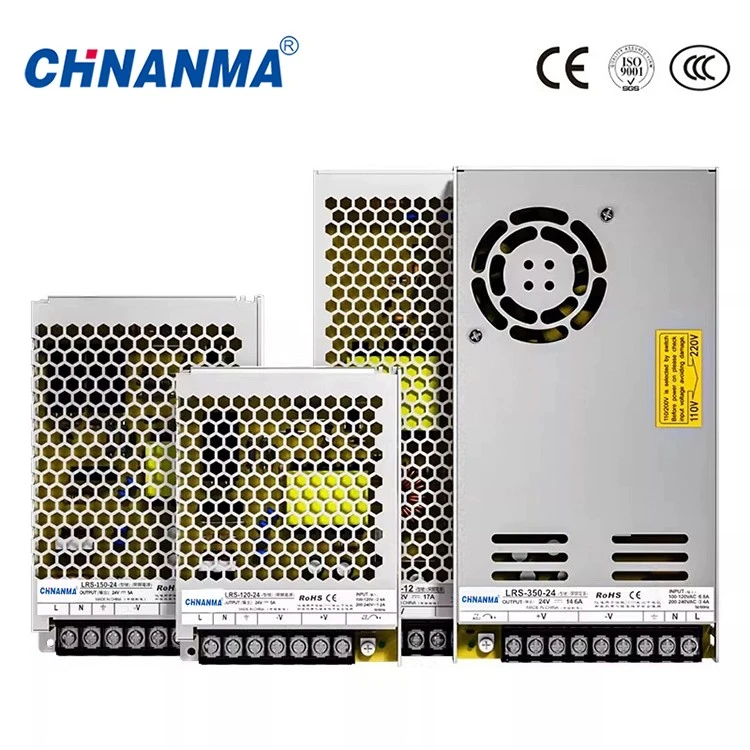

Q: Are other voltage options available in the LRS series power supply?
A: Yes. The same series offers 12V, 36V and 48V versions for different project demands.

Q: What typical applications suit this 150W 24V DC switching power supply?
A: It can be used for industrial automation, LED signage, 3D printers and security CCTV systems.
