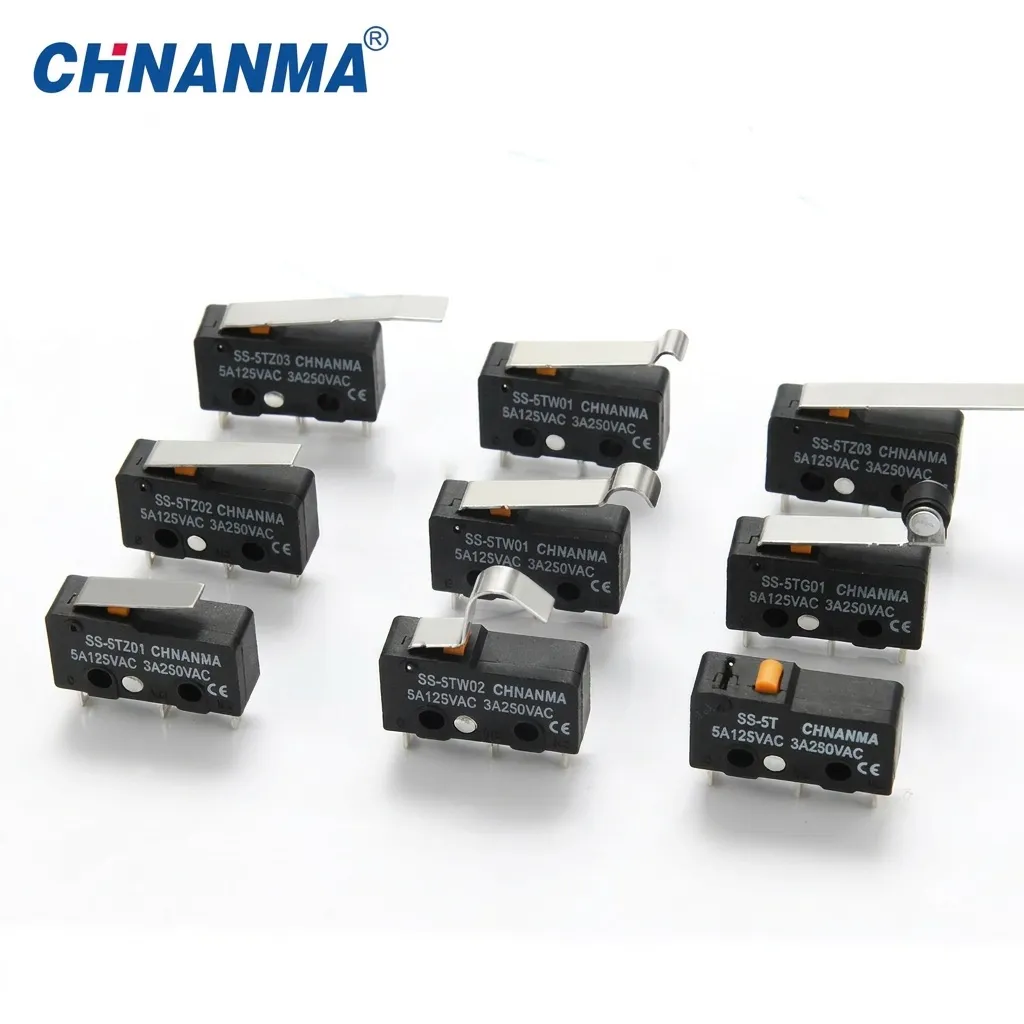

SS Micro Switch 5TW01 Large Arc

Product Introduction
Electrical Parameters

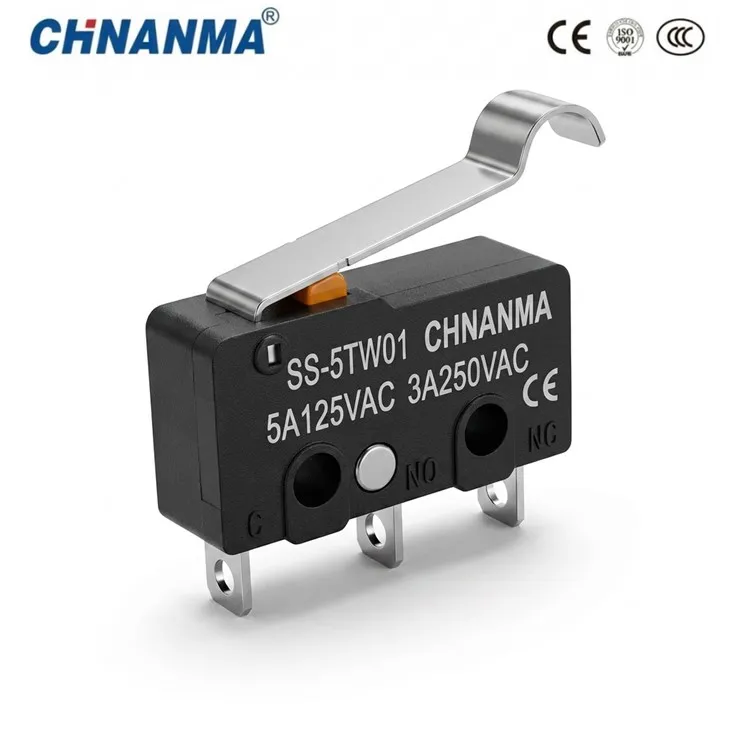

Model: SS-5TW01 Large Arc-Shaped Rocker Micro Switch
Rated Load: 5A 125VAC / 3A 250VAC
Connection Structure: Three-pin type, 1 open contact, 1 closed contact (COM common terminal + NO normally open + NC normally closed)
Certifications: CCC, CE, ISO9001, compliant with safety standards
Mechanical Life: ≥1 million cycles; arc-shaped rocker adapts to irregular push-pull structures, ensuring sensitive and smooth triggering.

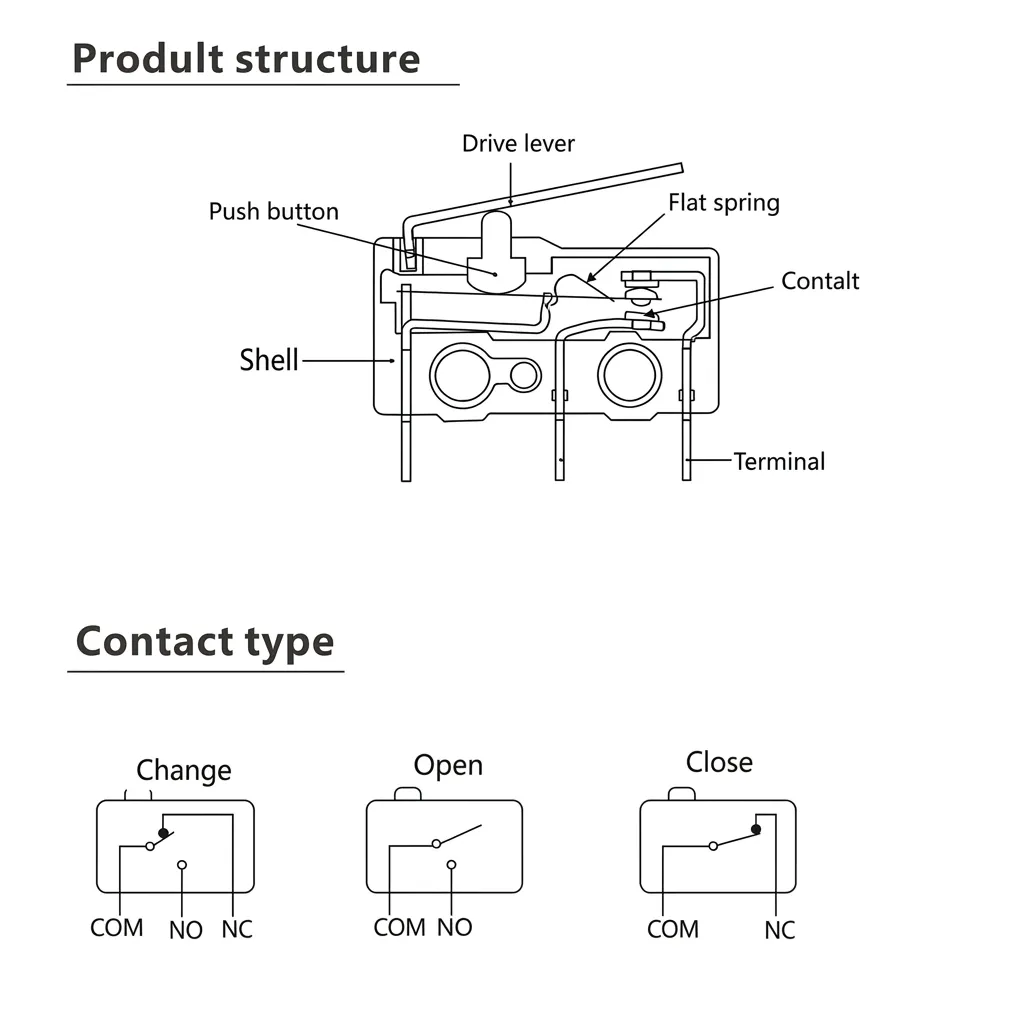

Structural Composition:

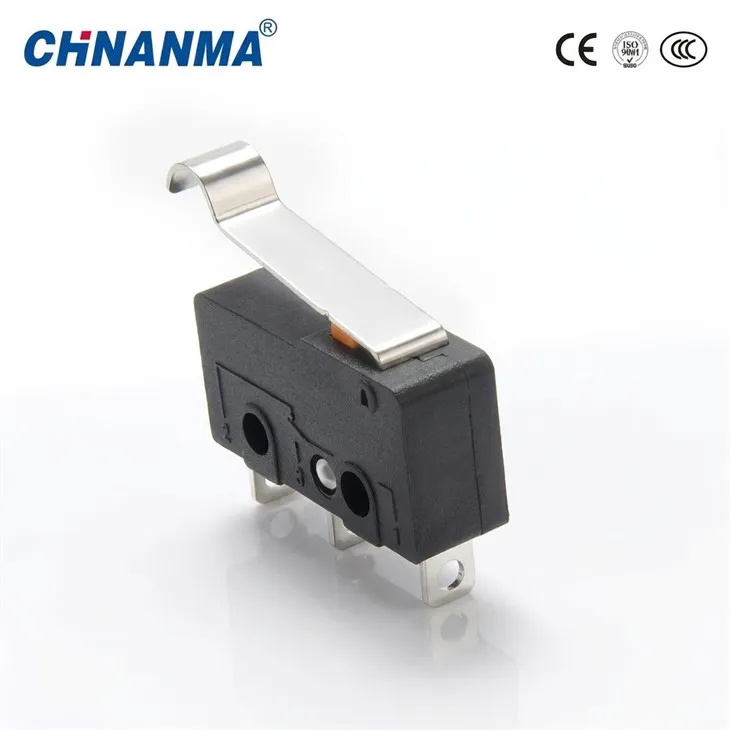

Large Arc-Shaped Metal Lever: A bent arc-shaped metal lever with an irregular hook design, adaptable to eccentric and lateral misalignment pressure; even irregular mechanical structures can smoothly utilize force to drive the internal buttons.

Flame-Retardant Plastic Housing: Black high-temperature resistant engineering plastic housing; possesses heat insulation, flame retardant, and anti-aging properties, effectively protecting the internal contact components.

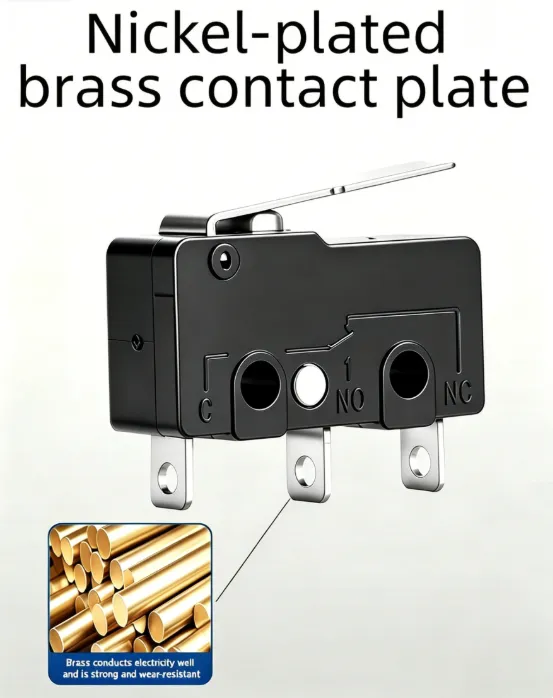

Three-Pronged Metal Terminals: COM, NO, NC standard pins; can be directly inserted, facilitating printed circuit board soldering and wiring.

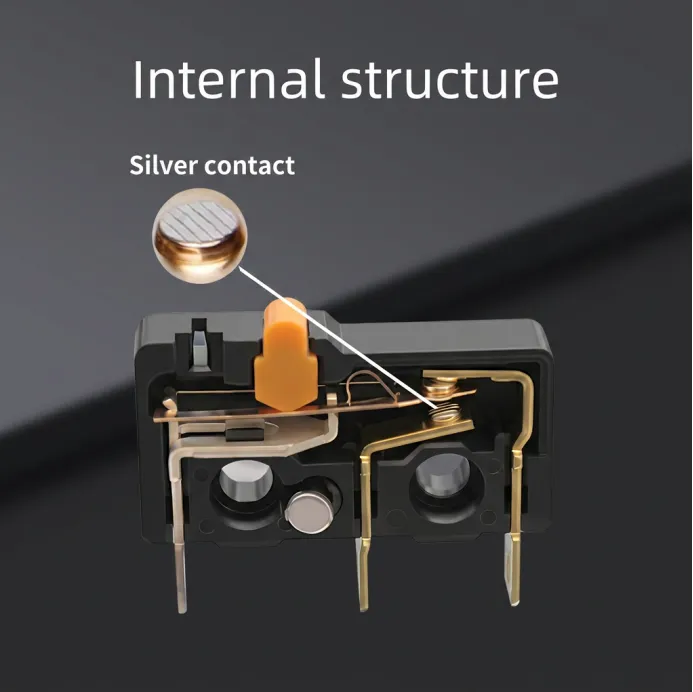

Internal Silver Alloy Contacts: Built-in spring-driven rapid-action structure; instantaneous disconnection; minimal arc initiation; stable conduction.

Product Features

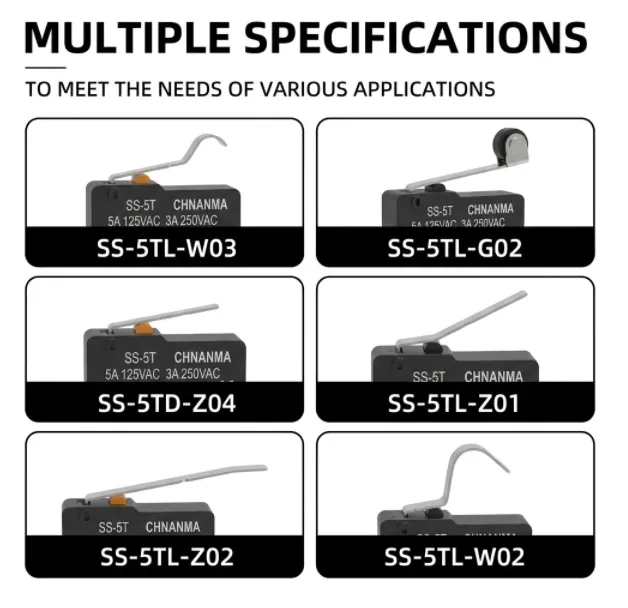

Large Arc-Shaped Hook Lever Design for Non-Standard Limiters: The arc-shaped bending lever can withstand eccentric, oblique, and misaligned pressure, precisely triggering irregularly shaped cams and protruding structures. It offers higher force tolerance and is less prone to slippage and jamming.

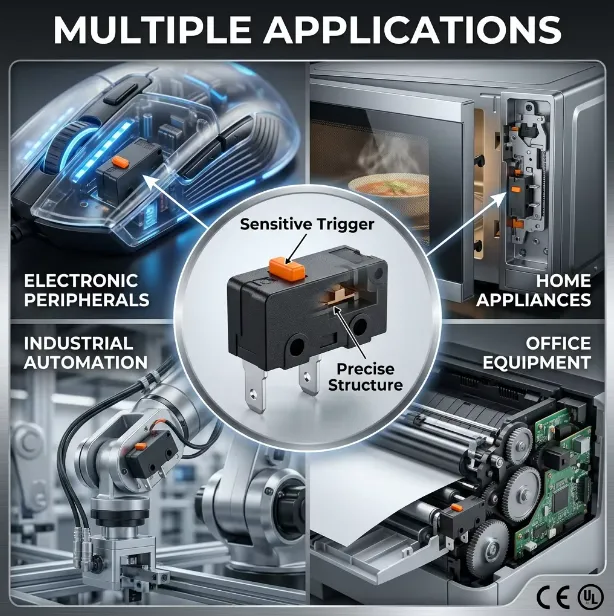

Flame-Retardant Insulating Housing for Safety and Reliability: The high-temperature resistant, flame-retardant PA housing effectively isolates potential leakage hazards, suitable for use in electrical environments such as household appliances and industrial control power supplies.

Silver Alloy Contacts for Ultra-Long Service Life: The contacts have anti-oxidation and anti-arc properties, capable of withstanding millions of repeated switching cycles without burning out, ensuring stable contact during long-term use.

Standard Three-Pin Connection for High Versatility: COM/NO/NC universal pins, with both normally open and normally closed functions, allow for flexible wiring and signal switching, adapting to most equipment replacement options.

Compact Design for Easy Installation: The compact body design includes pre-drilled mounting holes, allowing for both screw-on and snap-on installation methods. It can be installed in confined spaces and for non-standard automated limiters.
