Product Introduction:

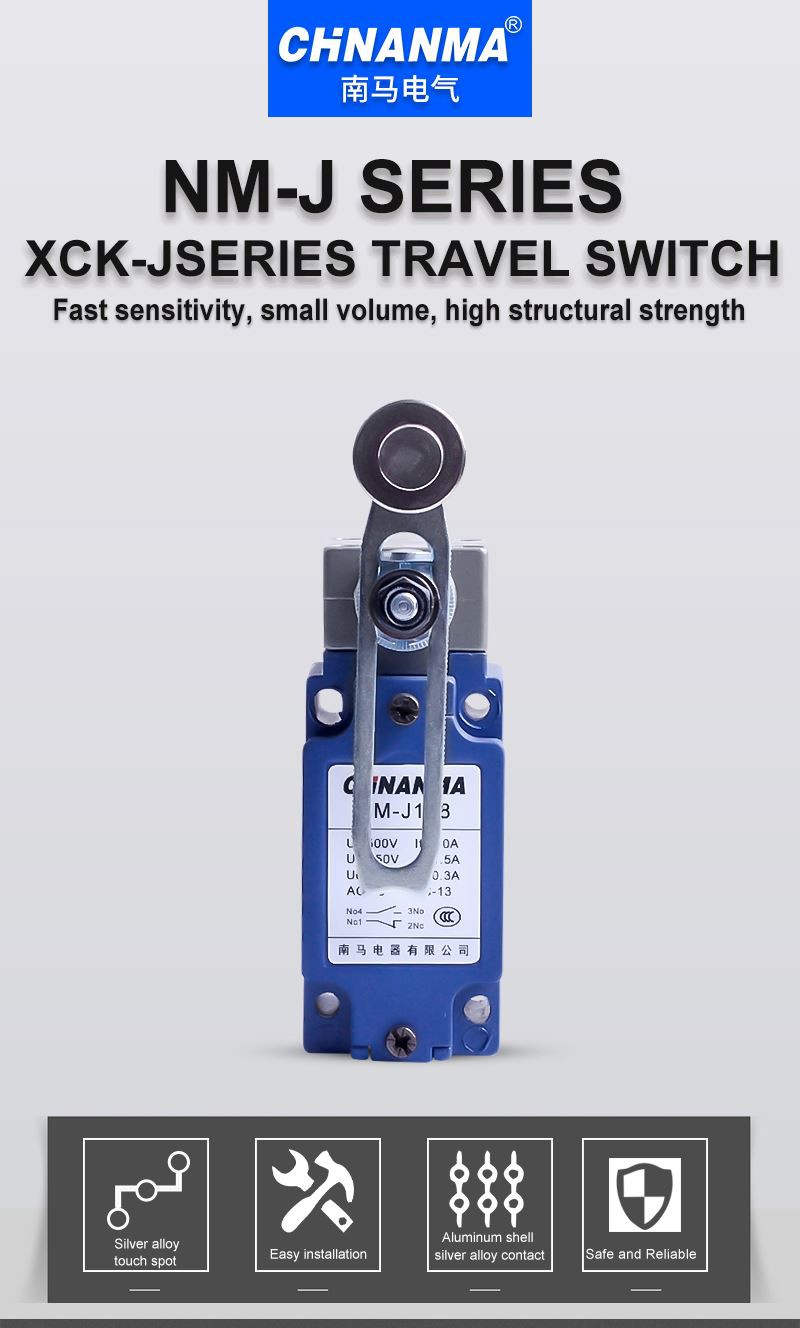

XCK-J108 Multi direction Type Thermal Limited Switch

It adopts special alloy metal, suitable for AC 50 ~ 60Hz: AC380V, dc220v, AC 10A control circuit, as the automatic control of machine tools and machinery, limiting movement, transmission mechanism action or program control.

It can work in the ambient temperature of - 25 ~ + 40 ℃; the altitude is 2000m; the protection level is IP65; it meets the standard of iec337-1 and gb14048.5-2001 Double circuit limit switch, economical price.

The Limit Switch 220v is a compact and versatile switch that can be used to detect mechanical limits and position motions in a variety of machines and equipment. It is primarily used in industrial automation, machine tool, and material handling applications. The Limit Switch 220v has a compact design with an IP65/66/67 rating, making it resistant to dust, oils, and water. This switch can operate in temperatures ranging from -40°C to +70°C and has a high switching capacity of up to 10A. The Limit Switch 220v also features snap-action double-break contacts, making it highly reliable and suitable for high-speed switching applications.

Features:

●The shell is made of special alloy metal with strong and durable structure.

●Small volume, waterproof and oil proof.

●The built-in micro switch has double reed structure, which has longer mechanical life.

Technical Specification:
