DQ8-1 Series Metal Indicator Light(Wire-mounted Type)

DQ-8-1 Series

Metal Indicator Ligh

Product Introduction

The DQ8-1 Series are wire-mounted metal indicator lights suitable for 8mm standard panel cut-out mounting. This indicator light series serves as equipment signal indicators, and it can send out clear, stable light signals after correct positive-negative circuit connection. Different from ordinary plastic indicator lights with weak protection performance, this series adopts solid all-metal shell, complete standard internal sealing parts and multiple industrial protection grades, and can run continuously stably within rated electrical parameters. This product series has six core advantages: multi-colored glowing options, built-in waterproof silicone sealing parts, high-quality low-power LED chips, reliable industrial quality, labor-saving easy installation structure, and factory direct supply, which fully meets daily assembly and signal indication requirements of various matching panel equipment.

Features and Performance

 Appearance and structural design: This 8mm metal indicator light comes with chamfered head and pin terminals for easy wiring and assembly. The standard version features a compact design with a total length of 29mm, thread length of 15mm, panel diameter of 12mm, and light window diameter of 5mm. Customized dimensions are available upon request.It uses a standard mounting interface and fits 8mm standard panel holes.

 Shell material: The outer shell is nickel-plated brass with oxidation resistance. The rear housing is manufactured with flame-retardant insulating material, and waterproof silicone sealing parts are installed inside the lamp body to seal internal gaps against water.

 LED light source: This signal indicator lamp uses built-in high-quality low-power LED chips, matching the rated electrical parameters.

 Electrical performance: Standard specifications for this model are as follows: maximum contact resistance 50mΩ, minimum insulation resistance 1000MΩ, rated working voltage DC 24V. These values ensure stable circuit operation for the 24v indicator light.

 Industrial protection:This waterproof indicator light has passed standard tests. It reaches IP65 waterproof, IK10 impact resistance and UL94 V-0 flame retardant levels. It can block splashing water, bear mechanical impact and stop burning when meeting open flame.

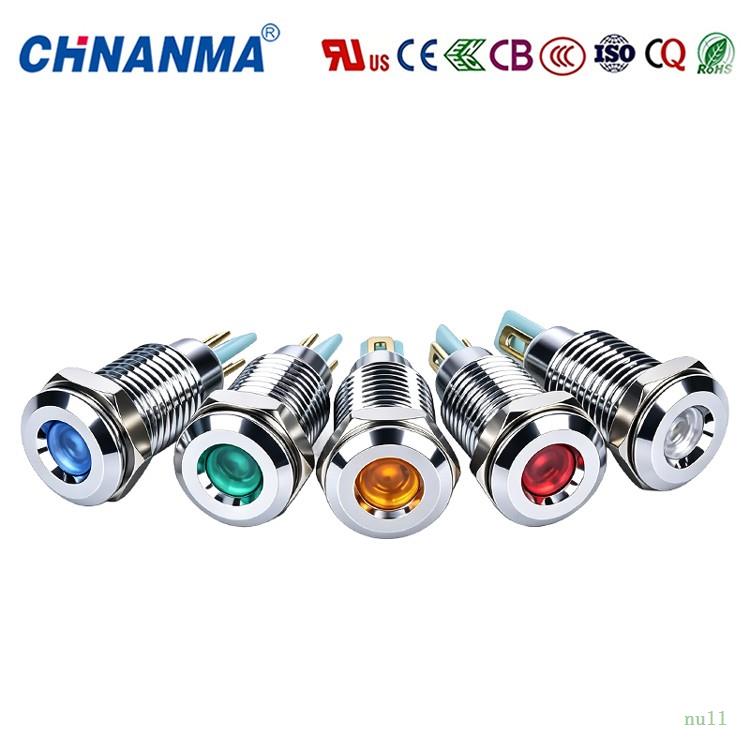

 Color and customization: It has five standard glowing colors: red, green, yellow, blue and white. We can print custom functional icons on the lamp surface to mark different equipment signals.

 Installation method: The lamp adopts threaded structure for panel fixing, and uses standard positive and negative pole wiring without extra auxiliary parts.

 Application: This indicator light applies to automation equipment, elevators, yachts, construction machinery, charging piles and other panel-mounted devices.

 Professional Source Manufacturer

We are a professional manufacturer based in Yueqing, Zhejiang. Focused on 8mm LED indicator light production, we possess full independent production lines for stamping, assembly and testing. As a direct manufacturer, we provide stable supply, competitive pricing, and efficient technical support for global customers.

 Strict Quality Control System

Each metal panel indicator lamp undergoes aging, waterproof and impact resistance tests before delivery. Complying with IP65, IK10 and UL94 V-0 standards, the products maintain stable performance during long-term industrial operation.

 Flexible Customization Services

Multiple customized solutions are available for the 24V LED pilot light. We support customized dimensions, printed functional icons, operating voltages and light colors to meet personalized equipment requirements.

 Complete Industry Certifications

Our waterproof LED indicator and industrial signal lamp are supported by a complete set of industry certifications. Relevant documents facilitate customs clearance for global clients and support overseas market expansion.
