NMFS-502 Double Foot Switch

Product Introduction

1. Basic Parameters

Rated Voltage: AC 250V

Rated Current: 15A (single channel)

Contact Type: 1NO + 1NC (normally open + normally closed), dual-channel independent control

Mechanical Life: ≥1 million cycles, Electrical Life: ≥500,000 cycles

Protection Rating: IP65 (splash-proof, dustproof)

Installation Method: Base-mounted, compatible with standard industrial equipment mounting holes

2. Structural Design

Dual-Pedal Split-Type: Left and right pedals are independently triggered, without interference, supporting independent dual-channel signal output, adapting to the dual-action control requirements of equipment.

All-Metal Protective Housing: The main body is made of cast aluminum, with an outer orange impact-resistant protective cover, effectively preventing accidental stepping and mechanical collisions, while also possessing anti-slip and wear-resistant properties.

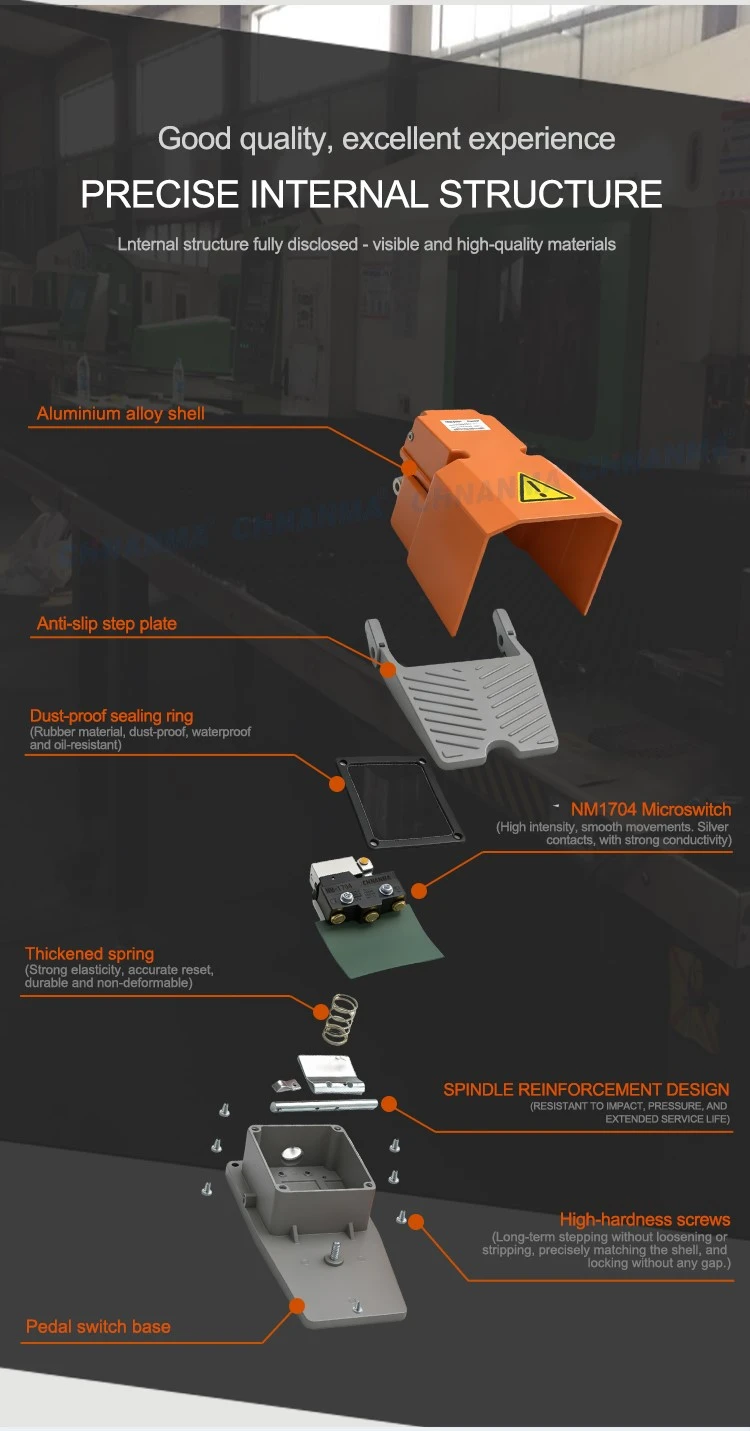

Modular Internal Components: Built-in high-life microswitches, combined with a stainless steel spring reset structure, ensuring sensitive triggering, stable return, and convenient disassembly and maintenance.


Product Features
Dual-Circuit Independent Control, Doubling Efficiency: The left and right pedals can control two separate circuits, supporting dual-action and dual-station operation of the equipment. This eliminates the need for hand-held operation, significantly improving production efficiency and avoiding the safety risks associated with manual operation.
Industrial-Grade Protection, Safe and Durable:The cast aluminum housing and anti-accidental-stepping protective cover protect against oil stains, splashes, and accidental collisions in the workshop. The anti-slip pedal texture design prevents slippage in wet/oily environments.
Long Lifespan and Stable Output: Built-in imported microswitches support millions of frequent pedaling cycles, ensuring stable contact and eliminating contact failure issues. Suitable for long-term, high-frequency use in industrial equipment.
Multi-Scenario Adaptability, Strong Compatibility: Supports various equipment such as punch presses, bending machines, welding equipment, and medical rehabilitation devices. Different trigger forces and pedal strokes can be customized to meet the control needs of different industries.
Complete Compliance Certifications: The product has passed multiple international certifications such as CE, UL, and ISO, complying with industrial electrical safety standards. It can be used safely in both export and domestic sales scenarios.
